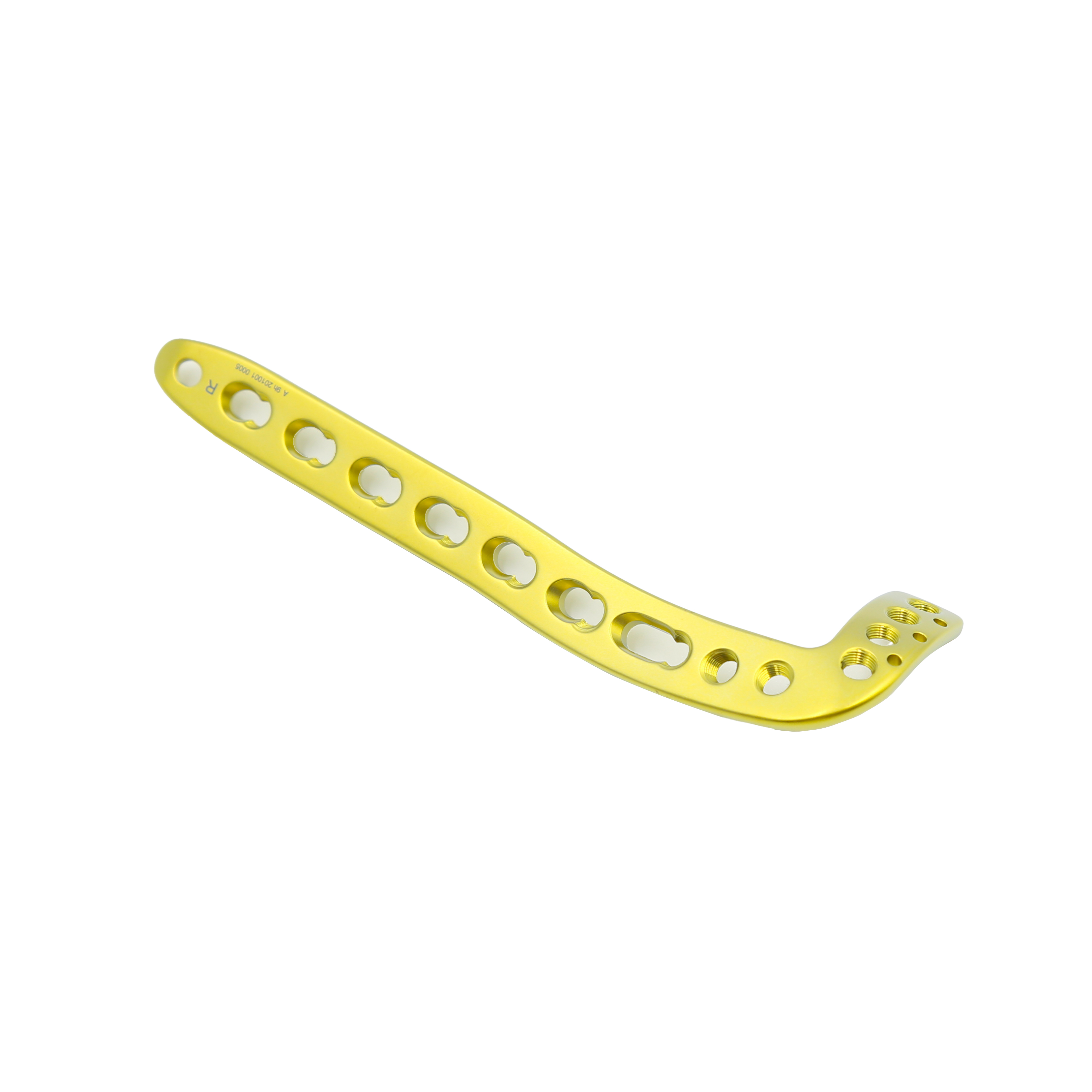

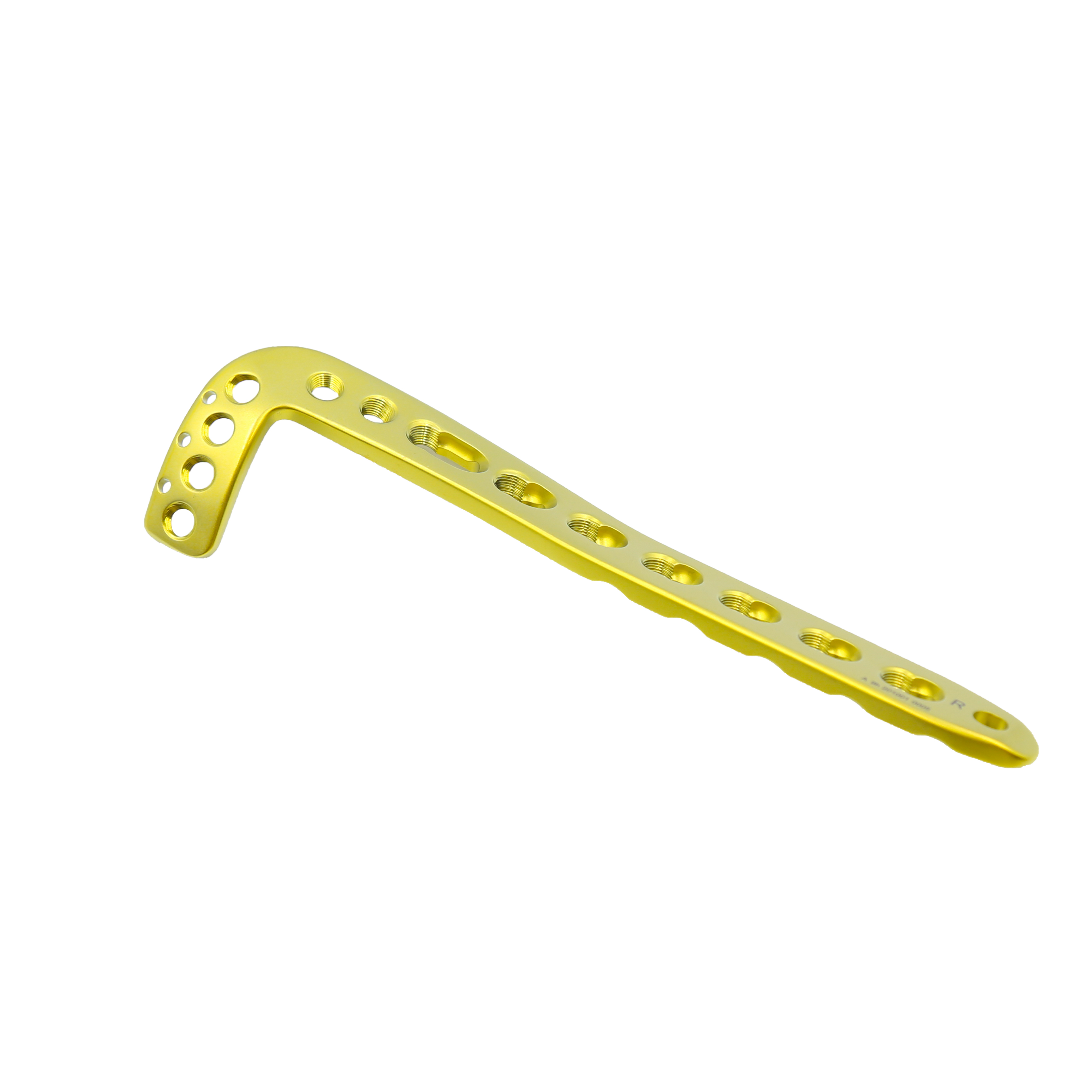

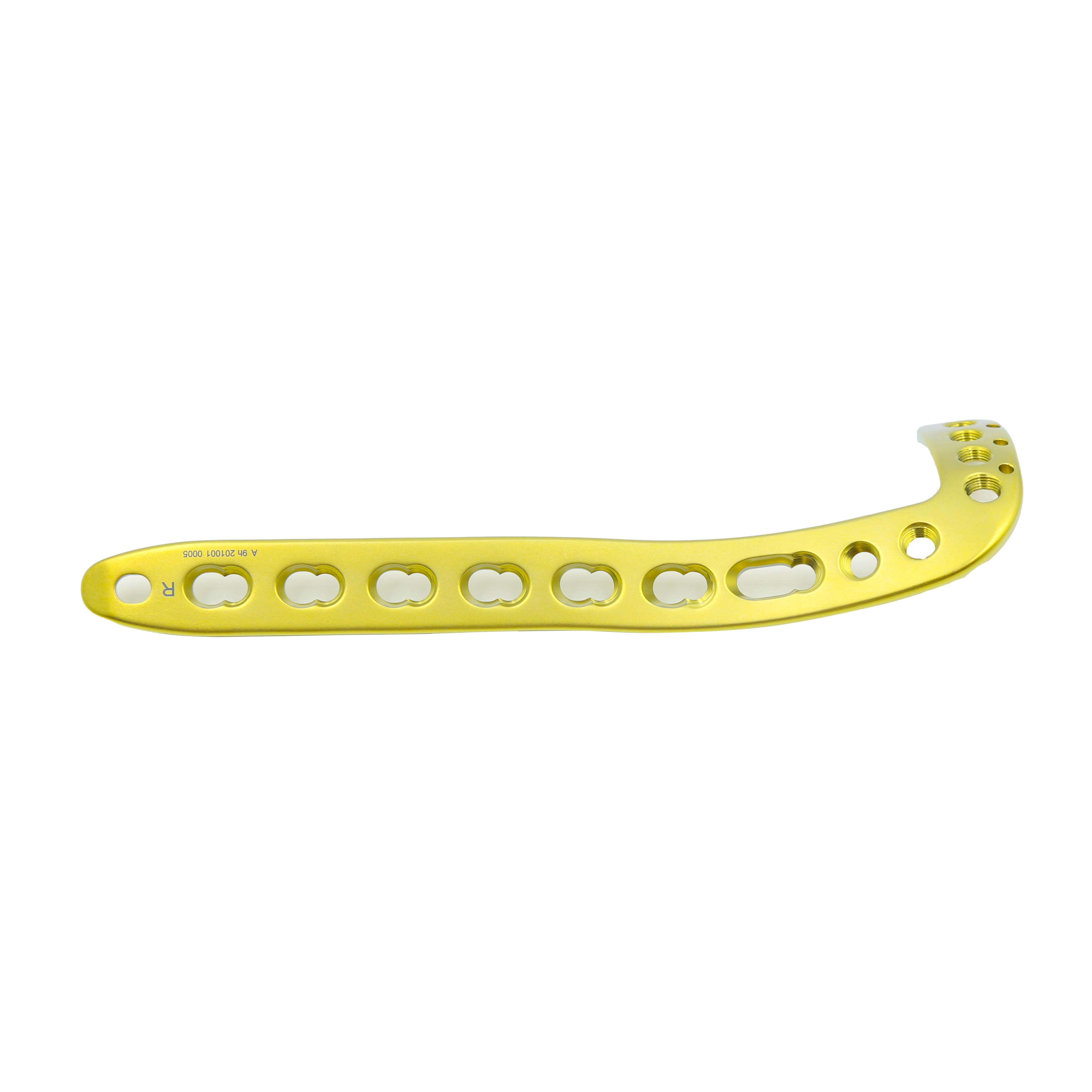

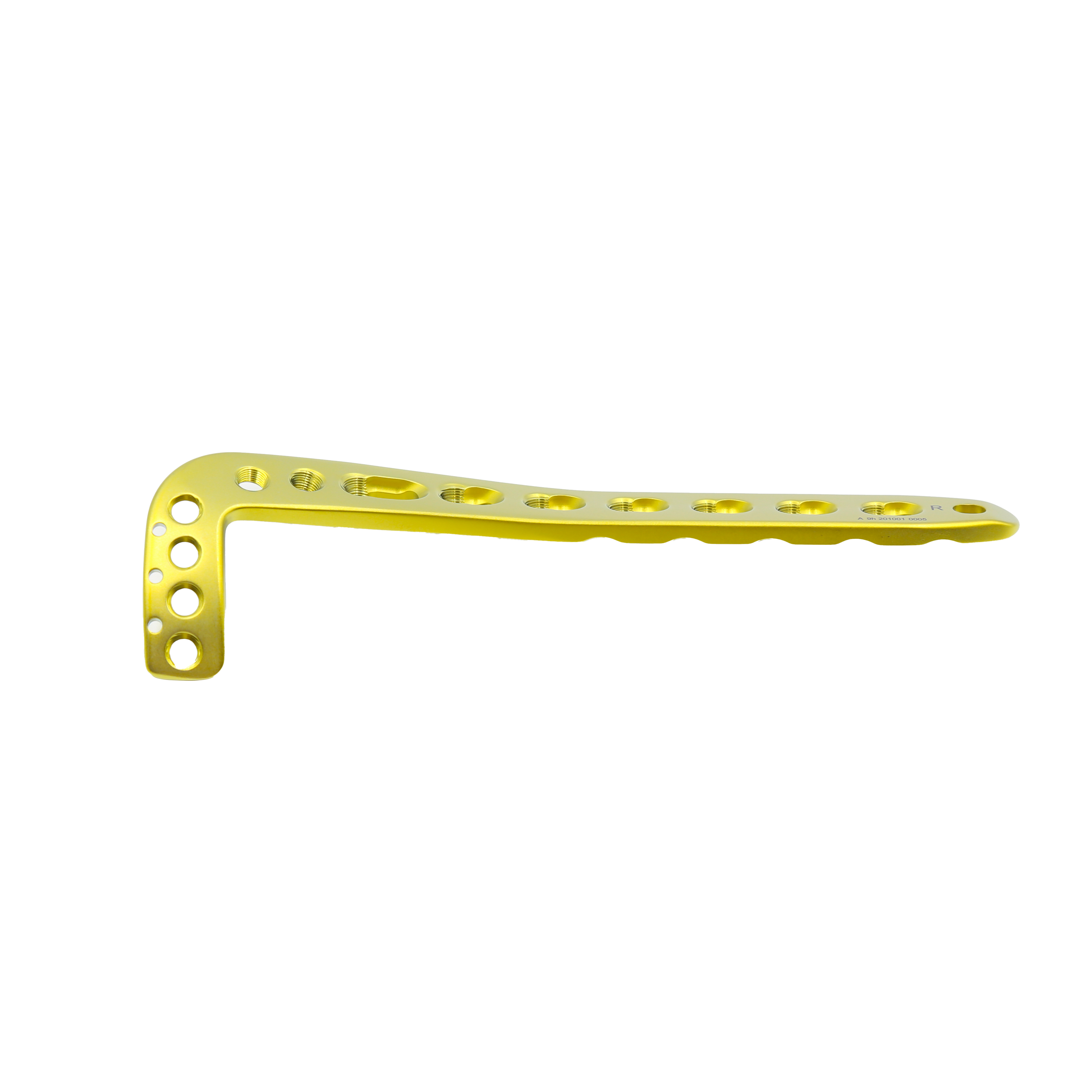

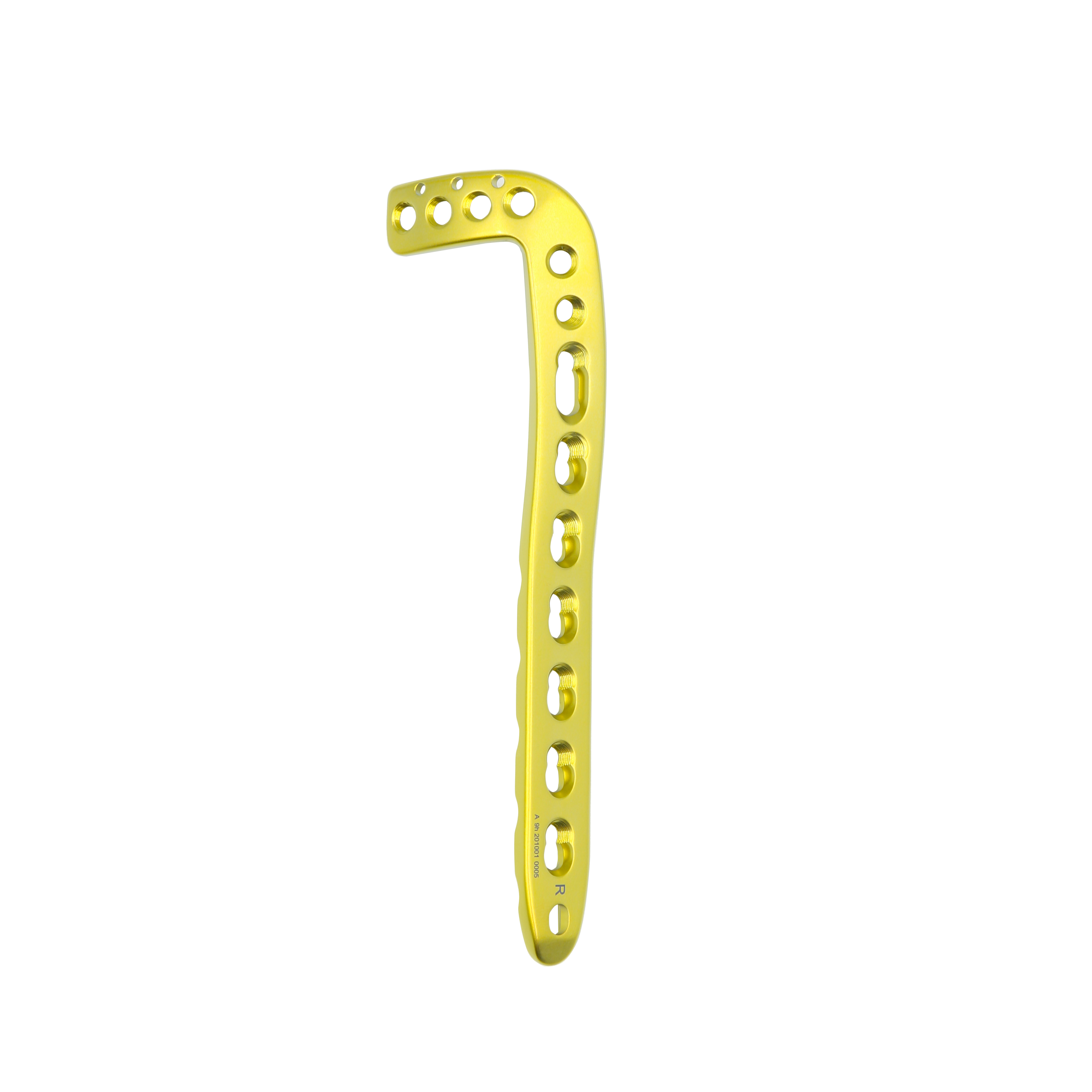

Distal tibial ortholateral locking plate

Distal tibial ortholateral locking plate

Product Summary：

The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Instructions
Being updated.
Features
Structure and composition:The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Product material: TA3G pure titanium sheet.

Certificate: CE/ISO 13485

Model Number: SDP-33

Tibial finite contact locking plate locking hole with the use of 3.5 screws.
Specifications
Product Type Model Length
Distal tibial ortholateral locking plate SDP-33 4 holes left/right 67
Distal tibial ortholateral locking plate SDP-33 5 holes left/right 80
Distal tibial ortholateral locking plate SDP-33 6 holes left/right 93
Distal tibial ortholateral locking plate SDP-33 7 holes left/right 106
Distal tibial ortholateral locking plate SDP-33 8 holes left/right 119
Distal tibial ortholateral locking plate SDP-33 9 holes left/right 132
Distal tibial ortholateral locking plate SDP-33 10 holes left/right 145
Distal tibial ortholateral locking plate SDP-33 11 holes left/right 158
Distal tibial ortholateral locking plate SDP-33 12 holes left/right 171
Distal tibial ortholateral locking plate SDP-33 13 holes left/right 184
Distal tibial ortholateral locking plate SDP-33 14 holes left/right 197
Distal tibial ortholateral locking plate SDP-33 15 holes left/right 210
Distal tibial ortholateral locking plate SDP-33 16 holes left/right 223
Distal tibial ortholateral locking plate SDP-33 17 holes left/right 236
Distal tibial ortholateral locking plate SDP-33 18 holes left/right 249
Distal tibial ortholateral locking plate SDP-33 19 holes left/right 262
Distal tibial ortholateral locking plate SDP-33 20 holes left/right 275
Distal tibial ortholateral locking plate SDP-33 21 holes left/right 288
Distal tibial ortholateral locking plate SDP-33 22 holes left/right 301
Distal tibial ortholateral locking plate SDP-33 23 holes left/right 314
Distal tibial ortholateral locking plate SDP-33 24 holes left/right 327

Scope of application
Used for internal fixation of fractures during orthopedic surgery
