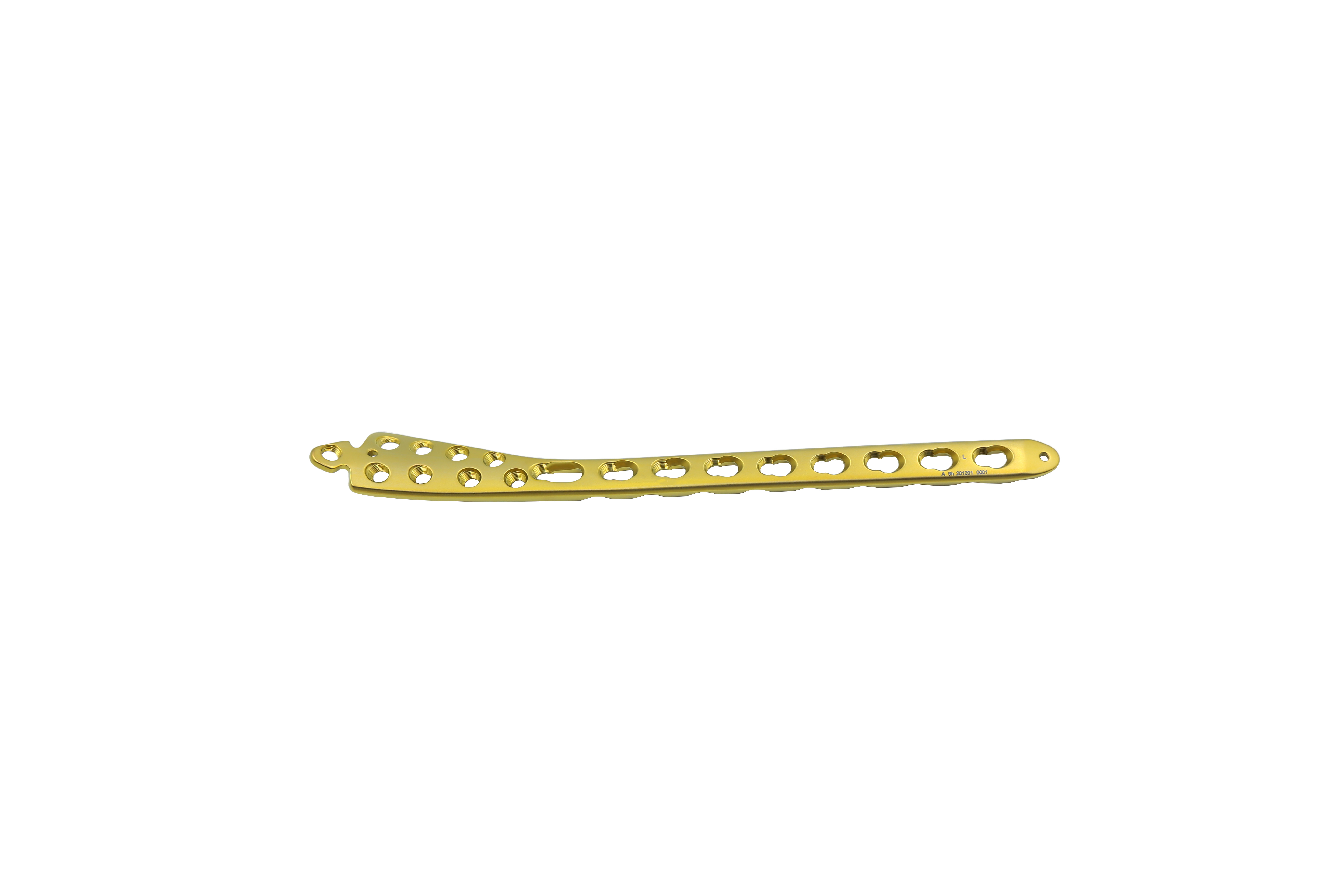

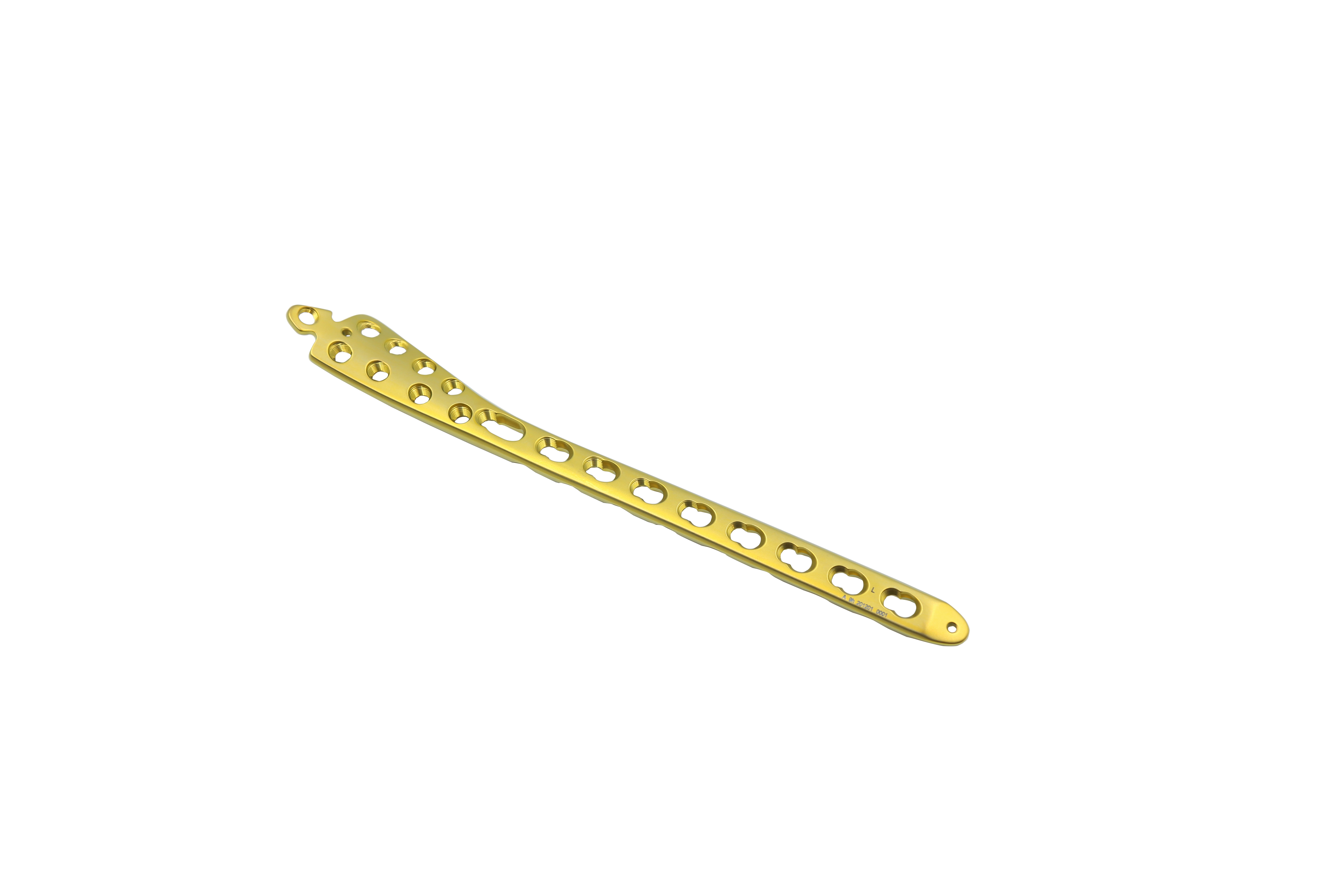

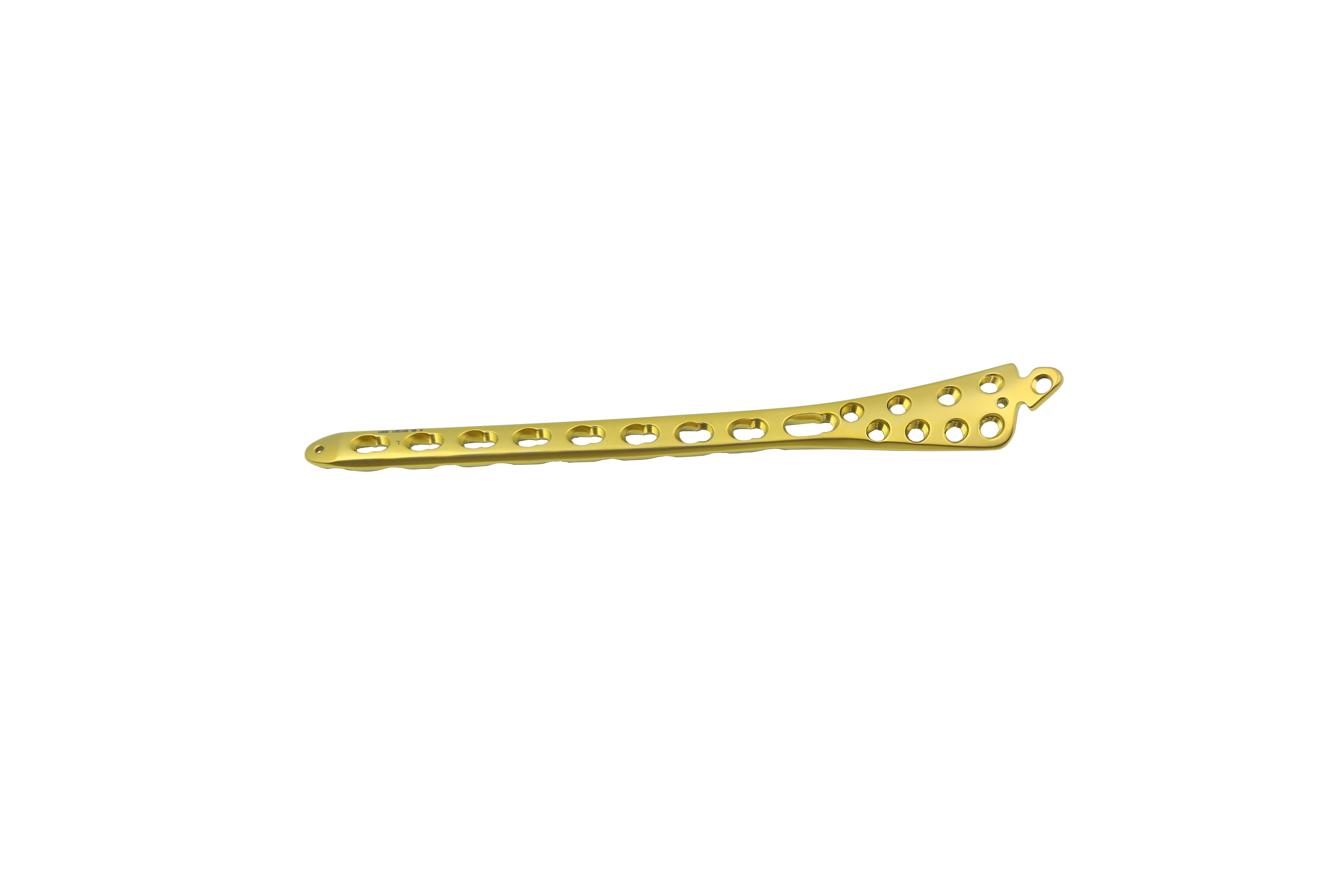

Distal tibial medial locking plate

Distal tibial medial locking plate

Product Summary：

The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Instructions
Being updated.
Features
Structure and composition:The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Product material: TA3G pure titanium sheet.

Certificate: CE/ISO 13485

Model Number: SDP-09

Tibial finite contact locking plate locking hole with the use of 3.5 screws.
Specifications
Product Type Model Length
Distal tibial medial locking plate SDP-09 4 holes left/rigth 117
Distal tibial medial locking plate SDP-09 5 holes left/rigth 130
Distal tibial medial locking plate SDP-09 6 holes left/rigth 143
Distal tibial medial locking plate SDP-09 7 holes left/rigth 156
Distal tibial medial locking plate SDP-09 8 holes left/rigth 169
Distal tibial medial locking plate SDP-09 9 holes left/rigth 182
Distal tibial medial locking plate SDP-09 10 holes left/rigth 195
Distal tibial medial locking plate SDP-09 11 holes left/rigth 208
Distal tibial medial locking plate SDP-09 12 holes left/rigth 221
Distal tibial medial locking plate SDP-09 14 holes left/rigth 247

Scope of application
Used for internal fixation of fractures during orthopedic surgery.
