Humerus Multi-dimensional Locking Intramedullary Nail

Humerus Multi-dimensional Locking Intramedullary Nail

Product Summary：

Being uodated.

Instructions
Othopedic surgery

Features
Straight main nail design with central feed point
Improving anchoring with strong subchondral bone；
Using a typical three-part fracture, insertion from the fracture area can be avoided as much as possible;
Protects the supraspinatus attachment point where the blood supply is poor；

Multi-dimensional interlocking screws
Blunt nail tip to reduce the risk of penetrating the contralateral cortex；
Stitching holes at the end of the staple  to ensure reliable attachment of the rotator cuff muscles;
Nail-in-staple design for improving fixation of osteoporotic bones.

Upper row screws (humeral spur screws)
Ensure fixation of proximal humeral fractures, especially medial comminuted (inversion type) fractures.

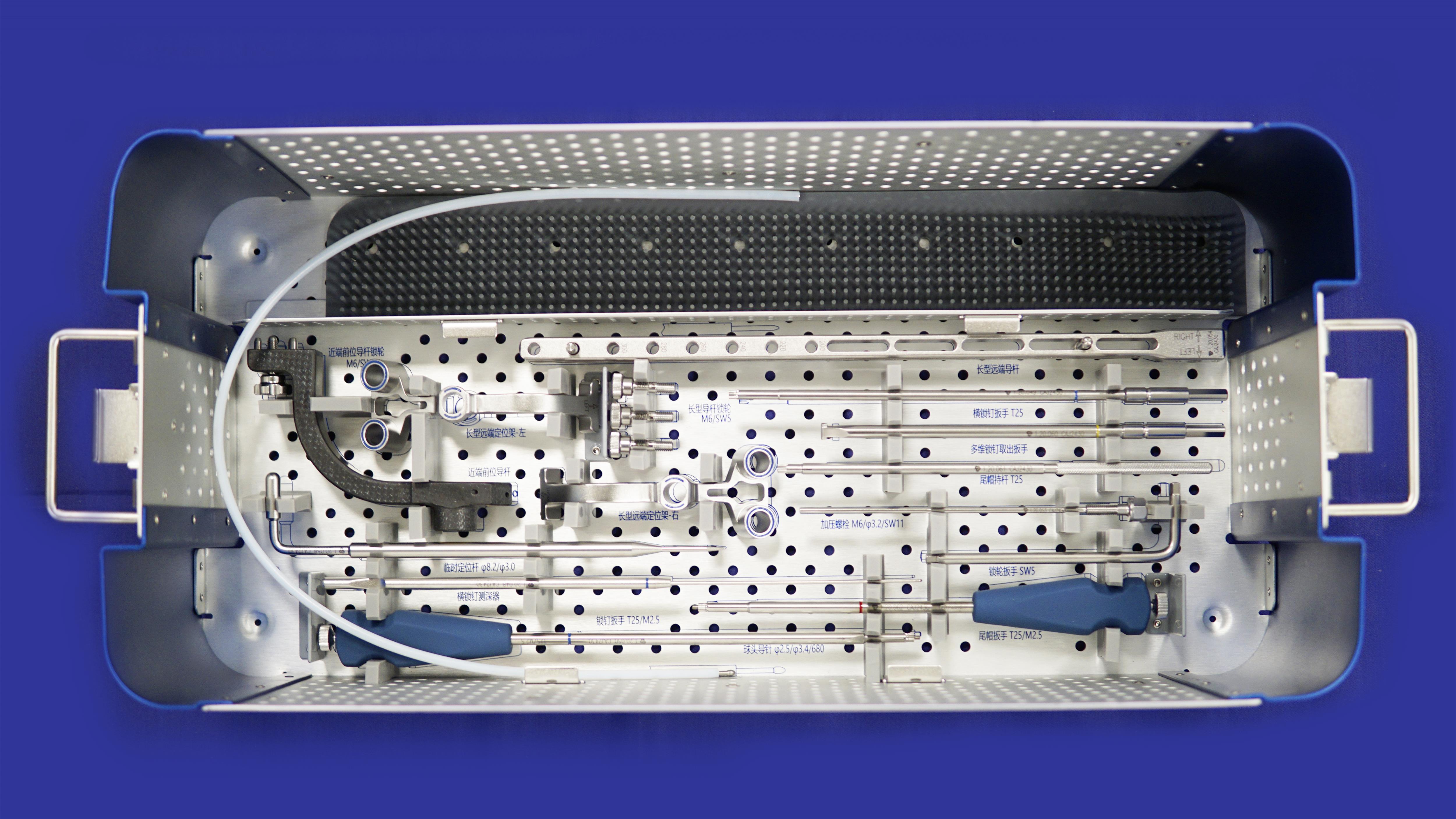

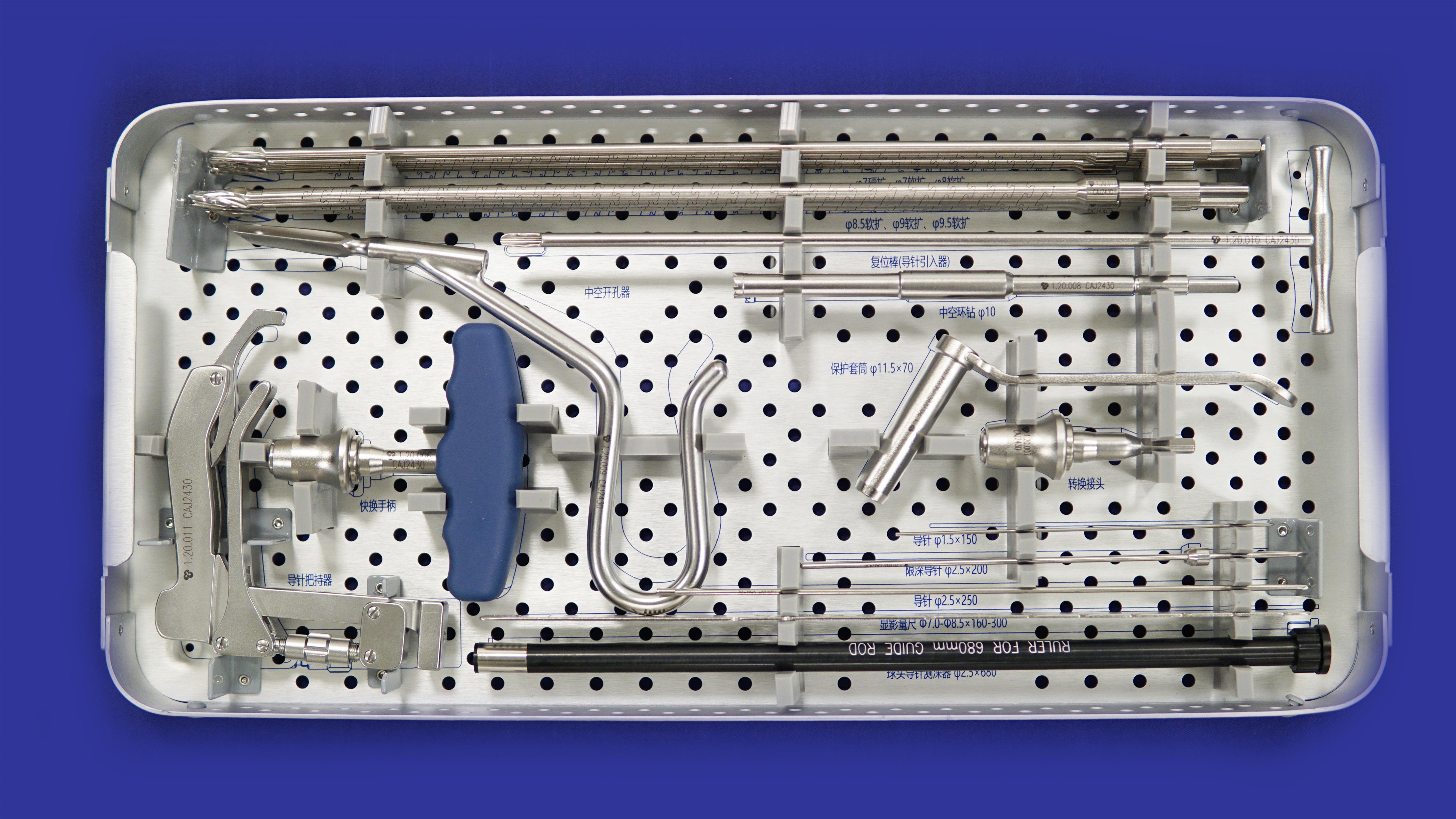

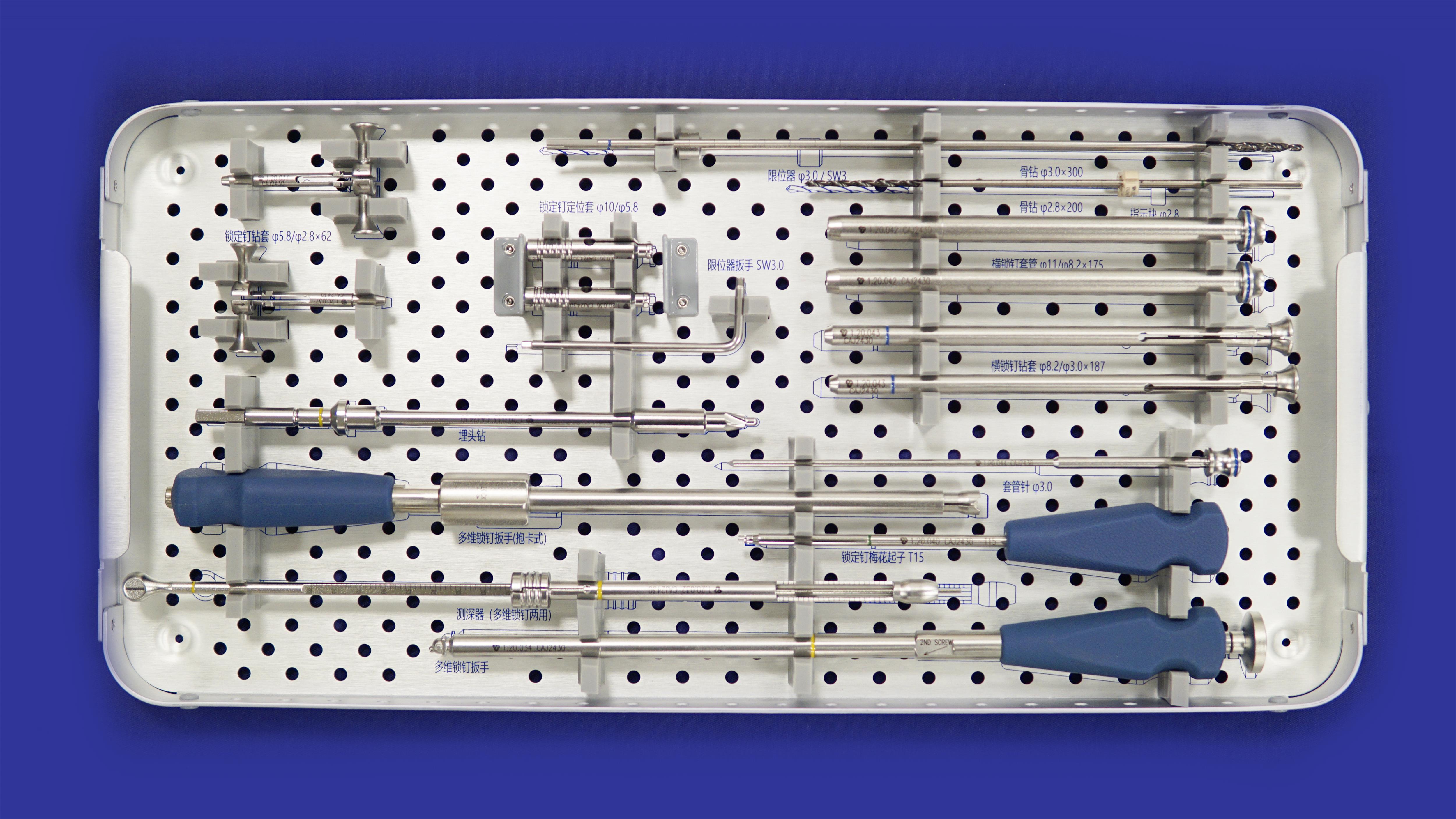

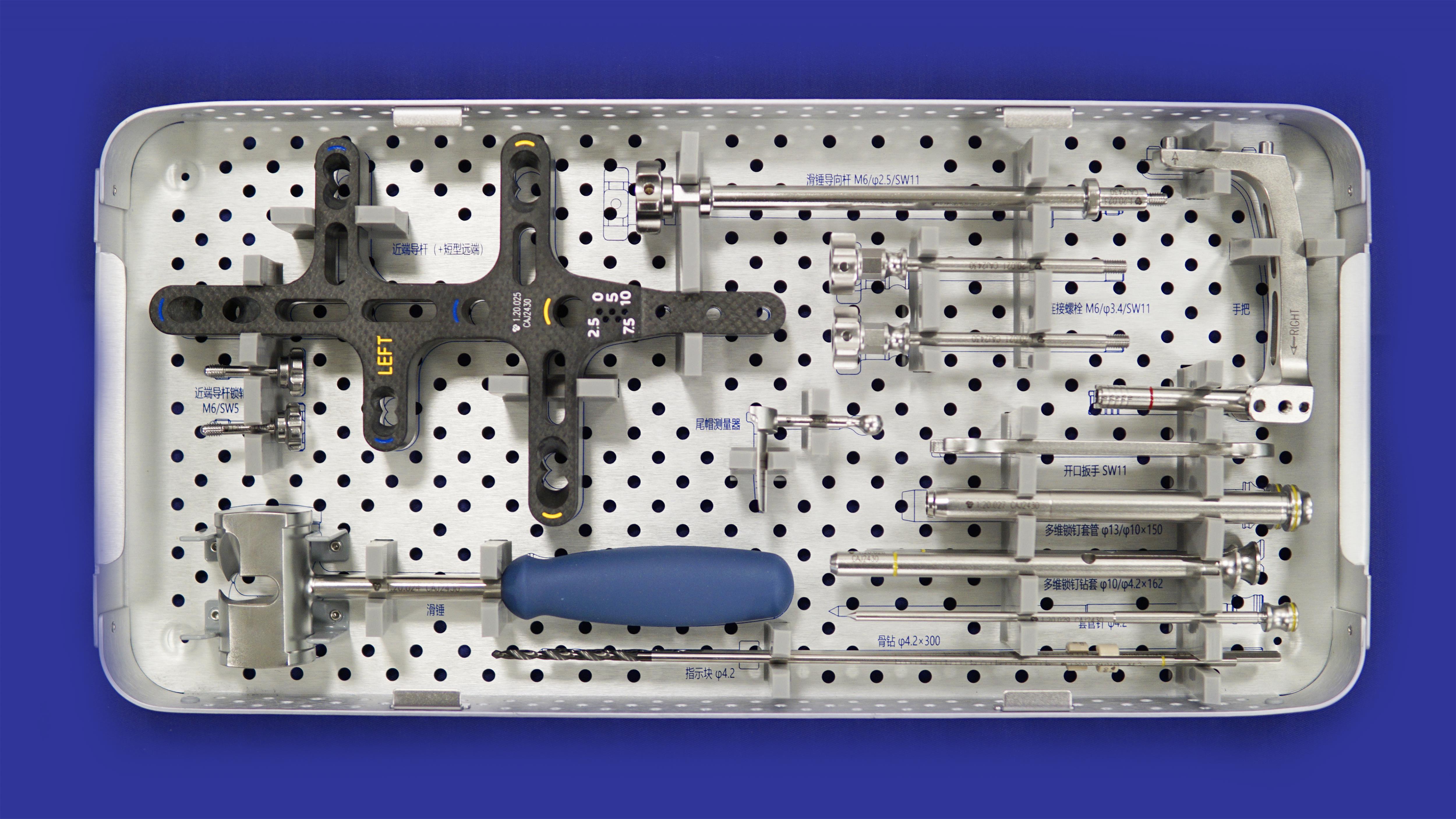

Intelligent tools
Simplifying the procedure and saving time;
Color markings to reduce the hassle of finding parts and facilitate installation.

Specifications
Intramedullary nail
Product Type Model Specification
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*160  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*180  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*200  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*220  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*240  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*260  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*280  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.0*300  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*160  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*180  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*200  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*220  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*240  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*260  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*280  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ7.5*300  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*160  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*180  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*200  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*220  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*240  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*260  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*280  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.0*300  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*160  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*180  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*200  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*220  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*240  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*260  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*280  left/right
Humerus Multi-dimensional Locking Intramedullary Nail SHGK φ8.5*300  left/right


Locking nail
Poduvt Type Model Specification
Locking nail SHGK φ3.5*20
Locking nail SHGK φ3.5*24
Locking nail SHGK φ3.5*28
Locking nail SHGK φ3.5*32
Locking nail SHGK φ3.5*36
Locking nail SHGK φ3.5*40
Locking nail SHGK φ3.5*44
Locking nail SHGK φ3.5*48
Locking nail SHGK φ3.5*52
Locking nail SHGK φ3.5*56
Locking nail SHGK φ3.5*60
Locking nail SHGK φ3.5*64
Locking nail SHGK φ5.0*20 (locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*24(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*28(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*32(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*36(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*40(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*44(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*48(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*52(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*56(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*60(locking hole with the use of 3.5 screws)
Locking nail SHGK φ5.0*64(locking hole with the use of 3.5 screws)


Seal cap
Product Type Model
Seal cap SHGK M6

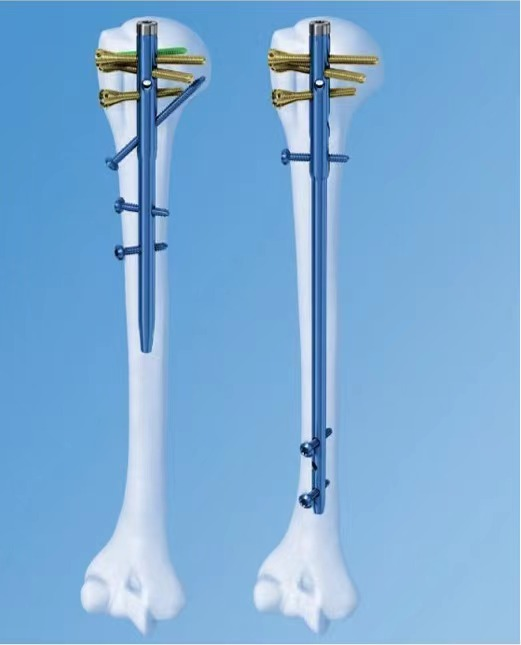

Scope of application
  • Short intramedullary nail
           2 Partial surgical neck fracture；
           3 Partial fracture；
           4 Partial fracture；
  • Longer intramedullary nail
      Humeral stem fracture；
         Fracture of the proximal humerus extending into the diaphysis；
         Proximal humerus combined with humerus；
         Diaphyseal fracture.
