Instructions
With special orthopedic equipment use
Features

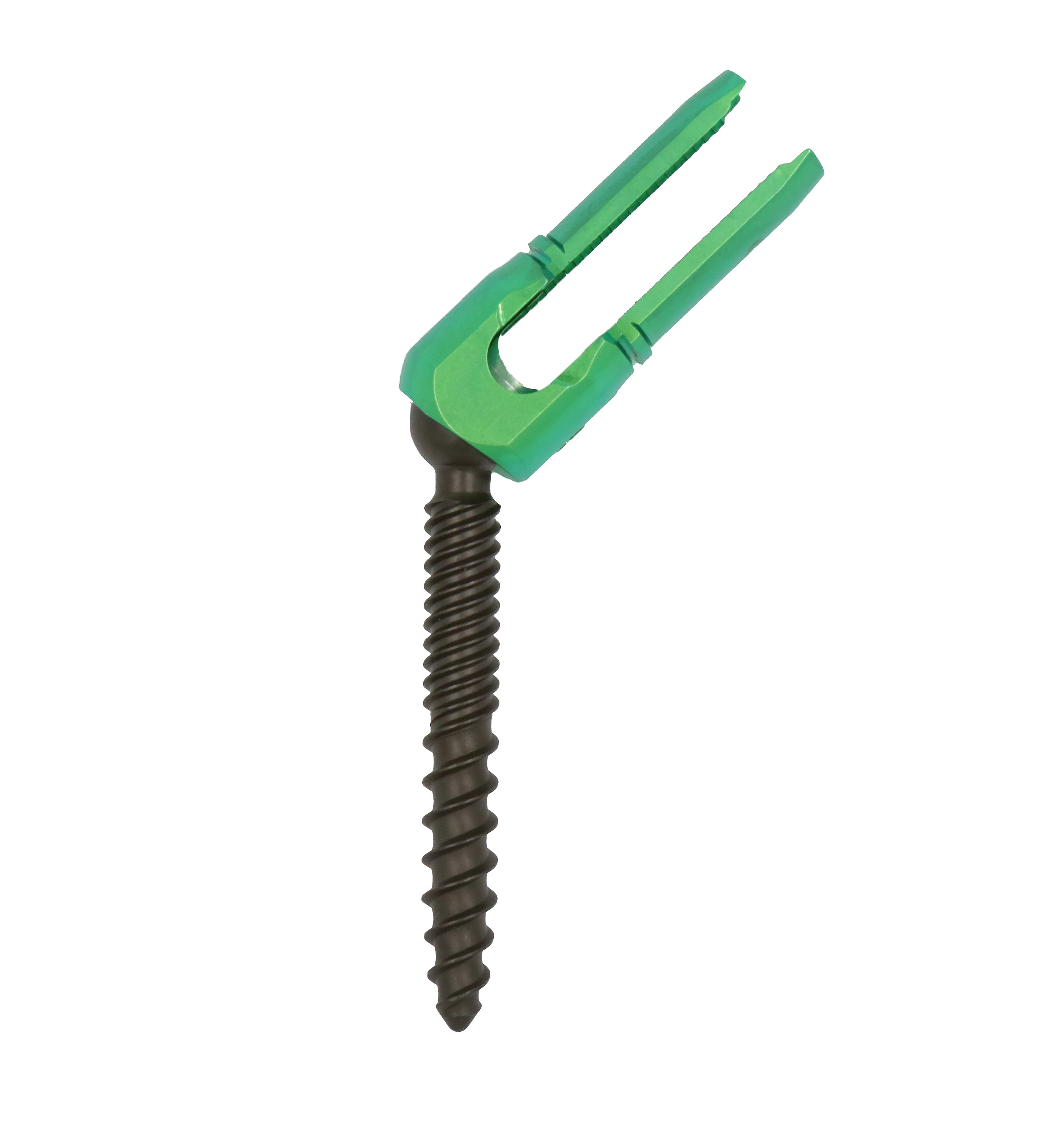

- 17mm reset long tail arm without the need for additional reset tools, down to 17mm press rod distance and reset height
- Annular contact surface avoid the problem of nail head spreading by interlocking the fixing screw
- Strengthen the four-thread screw thread Strengthen the control of the pedicle
- Double thread screw rod double thread design, faster nailing speed
- 10mm tapered head automatically guide to avoid breaking the pedicle
- 2mm guide area with the alignment function,converient to install the nut
- High-strength alloy cap the design of the alloy cap makes the rod lock and the screw head lock independent of each other, and the harder material brings low notch and higher connection strength
- Nail head fixing slot the nail head fixing slot keeps the implant part aligned, which simplifies the rod operation
- Large deflection angle the deflection angle range can be up to 84º, meet the requirements of the upper rod or the side at the same time
Specifications
Diameter(mm)
|
Length(mm)
|
| Φ4.5 |
20~80,every 5mm is a specification |
| Φ5.0 |
20~80,every 5mm is a specification |
| Φ5.5 |
20~80,every 5mm is a specification |
| Φ6.0 |
20~80,every 5mm is a specification |
| Φ6.5 |
20~80,every 5mm is a specification |
| Φ7.0 |
20~80,every 5mm is a specification |
| Φ7.5 |
20~80,every 5mm is a specification |
Scope of application
Suitable for thoracolumbar fractures, spondylolisthesis, deformities, degeneration, intervertebral disc herniation, spinal stenosis and other situations that require posterior internal fixation
