Anterior cervical fixation titanium plate

Anterior cervical fixation titanium plate

Product Summary：

The product components include fixed titanium plates and screws. The fixed titanium plate is made of TA3G pure titanium material conforming to the GB/T13810 standard, and the screw is made of TC4 titanium alloy material conforming to the GB/T13810 standard. The surface of the fixed titanium plate and the screw is treated with colored anodizing. Non-sterile packaging

Instructions
The implantation of the device should be performed by a physician who fully understands the device, its use, equipment and the required surgical techniques

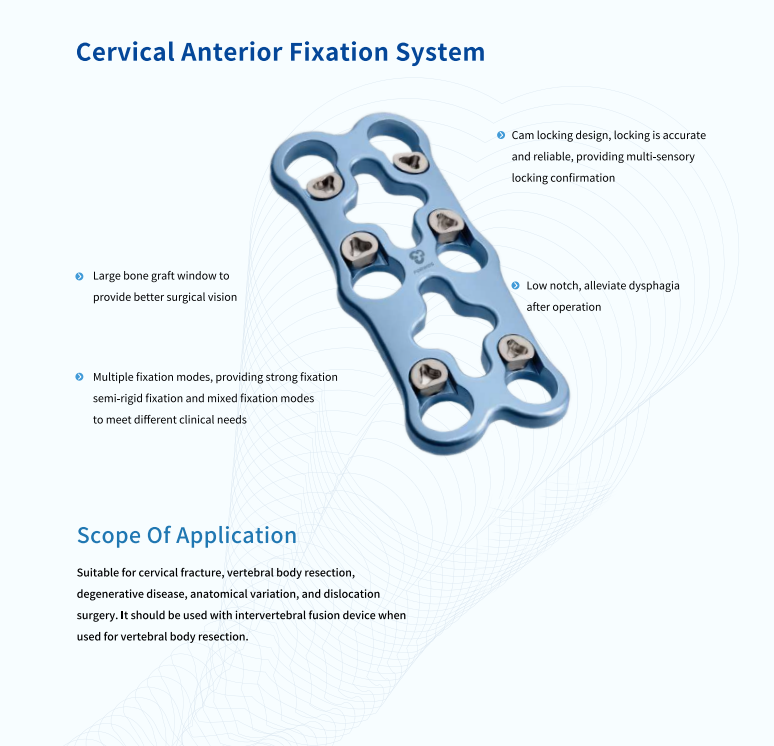

Features
  • Large bone graft window to provide better surgical vision
  • Multiple fixation modes, providing strong fixation semi-rigid fixation and mixed fixation modes to meet different cliniacl needs
  • Cam locking design, locking is accurate and reliable, providing multi-sensory locking confirmation
  • Low notch, allenviate dysphaga after operation
Specifications
Model Name Type Specification
JQL-Ⅱ Fixed tatinium plates
 		 - Length
25、27、30、32、35、38、41、44、47、
50、53、56、59、62、65
Screw Fixed Diameter Length
Self-tapping 4.0 10～25
Every 1mm is a specification
Self-drilling 4.0
JQL-Ⅲ Fixed tatinium plates - Length
21、23、25、27.5、30、32.5、35、37.5、40、42.5、45、47.5、50、52.5、55、57.5、60、62.5、65、67.5、70、72.5、75、77.5、80、82.5、85、87.5、90、95、100
Screw Fixed Adjustable Diameter Length
Self-tapping 4.0、4.5 10～25
Every 1mm is a specification
Self-drilling 4.5
JQL-Ⅳ Fixed tatinium plates - Length
19、22、25、27、29、31、33、35、37、39、41、
43、45、47、49、51、53、54、57、60、63、66、
69、72、75、78、81、84、87、90
Screw Fixed Adjustable Diameter Length
Self-tapping 4.5、4.8 10～25
Every 1mm is a specification
Self-drilling 4.5
Note: There are two types of screw head: hexagon socket and plum blossom.

Scope of application
It is suitable for cervical spine fracture, vertebral body resection, degenerative disease, anatomical variation, and dislocation surgery for anterior cervical internal fixation. The product should be used with intervertebral fusion cage when used for vertebral body resection surgery.
