Oblique lateral lumbar interbody fusion cage

Oblique lateral lumbar interbody fusion cage

Product Summary：

The product is made of PEEK material (grade LT1) that meets the requirements of the YY/T0660 standard, and the developing point is made of TC4 titanium alloy material that meets the requirements of the GB/T13810 standard. It contains non-sterile packaging and radiation sterilization packaging, and the sterilization period is valid. For five years.

Instructions
The implantation of the device should be performed by a physician who fully understands the device, its use, equipment, and the required surgical techniques, and should be performed in strict accordance with the instruction manual and operation technical manual.

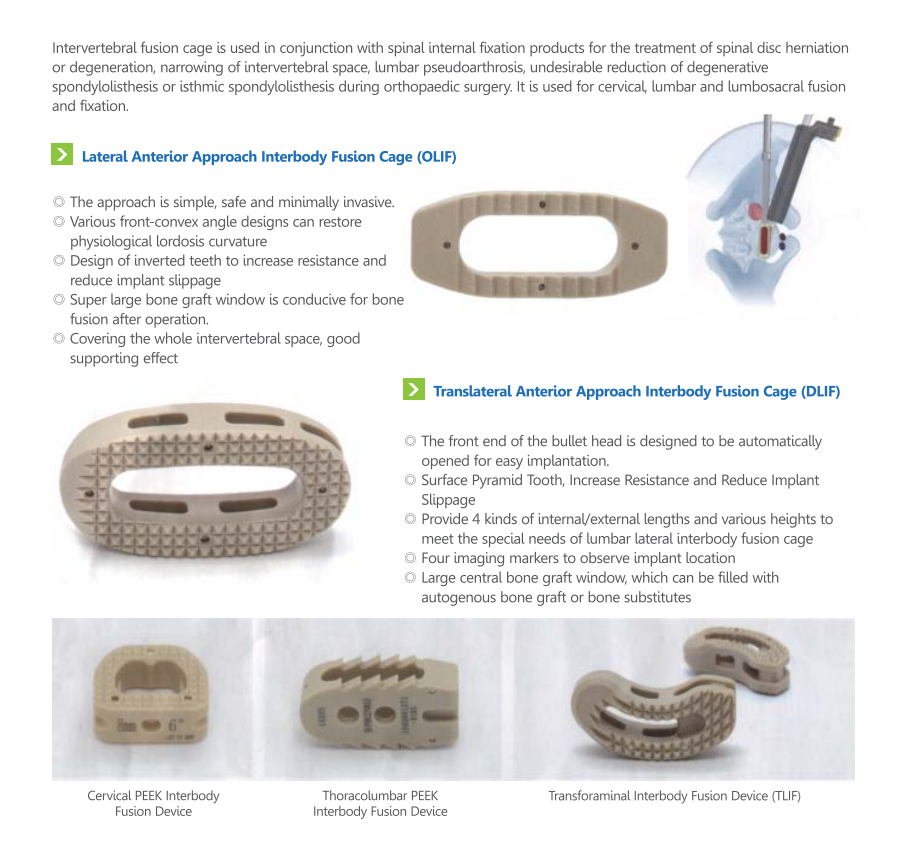

Features
  • The approach is simple, safe and minimally invasive.
  • Various front-convex angle designs can restore physiological lordosis curvature.
  • Design of inverted teeth to increase resistance and reduce implant slippage.
  • Super large bone graft window is conducive for bone fusion after operation.
  • Covering the whole intervertebral space, good supporting effect
Specifications
Product Type Model Specification
Height Width Length Inclination α
Lumbar fusion cage YZRH-Ⅰ 7,8,9,10,11,12,13,14 10,12 18,20,22,24,26,28 -
YZRH-Ⅱ 7,8,9,10,11,12,13,14 10,12 20,22,24,26,28,30,32,34,36 -
YZRH-Ⅲ 7,8,9,10,11,12,13,14 10,12 20,22,24,26,28,30,32,34,36 5°,8°
YZRH-Ⅳ 7,8,9,10,11,12,13,
14,15,16,17,18,19,20		 8,10,12 18,20,22,24,26,28,30,32,34 5°,8°
Scope of application
intervertebral fusion cage is used in conjunction with spinal internal fixation products for the treatment of spinal disc herniation or degeneration,narrowing of intervertebral space,lumbar pseudoarthrosis, undesirable reduction of degenerative spondylolisthesis or isthmic spondylolisthesis during orthopaedic surgery. It is used for cervical,lumbar and lumbosacral fusion and fixation.
