Instructions
The arm abduction fixer is a very sophisticated surgical instrument, and the system can only be installed and removed by a specially trained doctor. FE8 arm abduction fixer (system) is equipped with a Φ4mm or Φ5mm special wrist bone traction needle.
1. Before surgery, it is necessary to determine whether the patient is suitable for the installation of a arm abduction fixer according to the patient's age, height, weight, surgical site, surgical purpose, surgical requirements, and patient trauma status, according to the requirements of indications, contraindications and precautions, etc. Intraoperative arm abduction fixer construction plan and implementation steps and other surgical plans. The arm abduction fixer built must be adapted to the patient's fracture site and fracture type in order to obtain a good fixation effect.
2. Before the operation, the adjustable parts of the arm abduction fixer should be completely loosened, and the locking bolts on the steel needle fixing clip of the arm abduction fixer should be properly loosened to ensure that the connecting rod and the steel needle can quickly be inserted into the arm abduction fixer during the operation. Fixed steel needle clamp
3. Before the operation, all the components of the arm abduction fixer and all the installation tools that will be used during the operation should be thoroughly cleaned and disinfected.
4. During the operation, the doctor should determine the penetration site and number of the metal spicules according to the surgical plan, but pay attention to avoiding important blood vessels and nerves to avoid secondary injury to the patient.
5. In the operation, the steel needles are arranged independently at the proximal and distal ends of the fracture, and the steel needles are inserted according to the requirements of the surgical plan.
6. The steel needle clamped by the arm abduction fixer must be suitable for the selected steel needle holder and have the same diameter. The steel needles must be placed in parallel. If necessary, the steel needle holder can be used as a guide to penetrate the steel needle.
7. Adjust the locking bolts of the arm abduction fixer so that all bolt heads should be placed toward the outside of the wrist joint fixator system to facilitate the operation of locking the fixation clip.
8. Adjust the arm abduction fixer and reset the fracture site so that the arm abduction fixer can be effectively fixed.
9. After confirming that the fracture site has been reset, and on the premise that the arm abduction fixer can be effectively fixed, lock all the fastening bolts to stabilize the arm abduction fixer and fix the fracture site.
10. The arm abduction fixer can be adjusted at any time according to the patient's condition after the operation. If necessary, some parts of the arm abduction fixer can be added or removed to adjust the rigidity of the arm abduction fixer to achieve the best fixation effect.

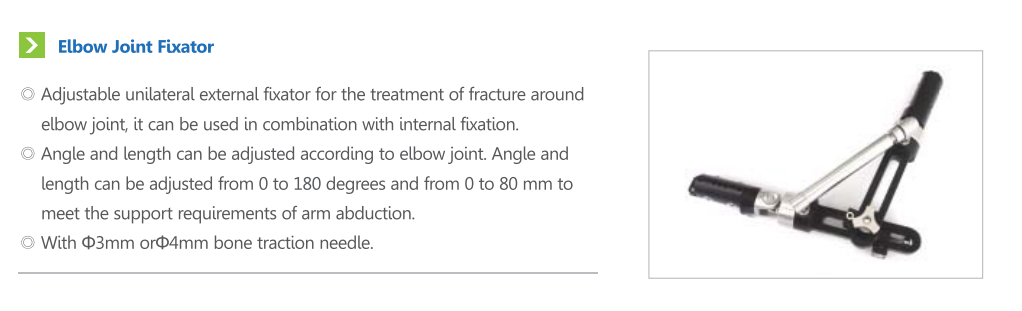

Features
- Adjustable unilateral external fixator for the treatment of fracture around elbow joint, it can be used in combination with internal fixation.
- Angle and length can be adjusted according to elbow joint. Angle and length can be adjusted from 0 to 180 degress and from 0 to 80 mm to meet the support requirements of arm abduction.
- With Φ3mm or Φ4mm bone traction needle.
Specifications
FE5M-D040 Complementary tools for orthopedic trauma surgery. Usually made of stainless steel material. reusable
Scope of application
Used to clamp bones for fixation or support during fracture fixation
