Bone growth repair fusion marrow concentrator

Bone growth repair fusion marrow concentrator

Product Summary：

Bone defects caused by infection, tumors, trauma and other factors are very common in clinical practice, and there is a huge demand for bone graft materials for its treatment.
Bone repair materials need good conductivity and osteoinductivity. Autologous bone grafting is the gold standard, and complications such as extra trauma caused by autologous bone extraction, limited bone extraction, pain in the bone extraction area, hematoma, fracture, infection and other complications are common; Although bone repair materials such as allogeneic bone, hydroxyapatite (HA), and tricalcium phosphate (TCP) have been used in clinics, due to the lack of osteogenic bioactive components of these materials, their osteogenic activity is poor.
It has been clinically proven that a large number of stem cells and osteogenesis-related growth factors contained in autologous red bone marrow have the ability to promote bone repair. According to this principle, the bone growth negative pressure enrichment device can quickly enrich the effective bone formation components such as stem cells and growth factors in the patient's autologous bone marrow into the bone repair material during the operation, so that it has the biological activity of autologous bone.

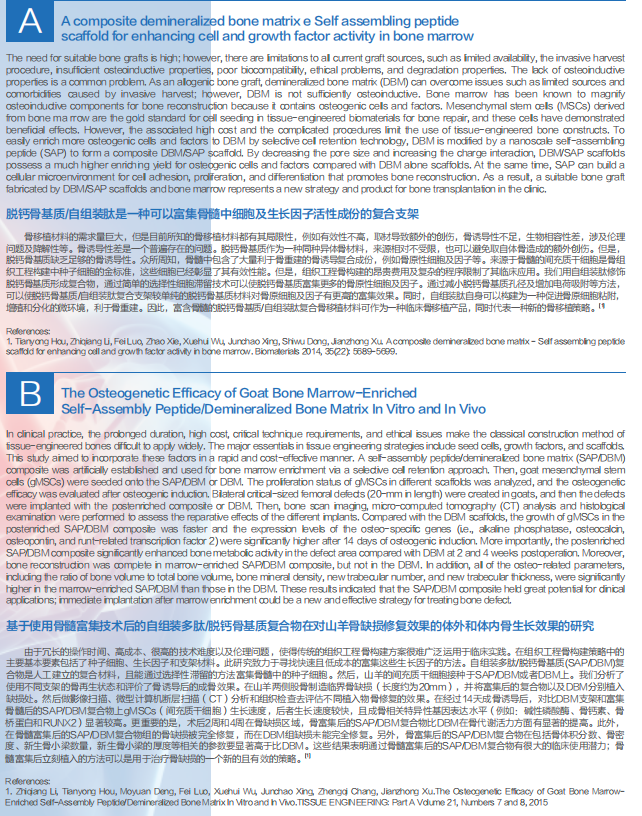

A large number of research reports, animal experiments and clinical cases have proved that this technology can significantly improve the biological activity of bone graft materials and increase the bone fusion rate.

Instructions
1. Equipment preparation
Configure 10-20ml of 1000U/ml heparin normal saline, and draw 1/5 of the volume of bone marrow to be drawn into the syringe in advance. Prepare 1~2 16# bone marrow puncture needles. Put the bone repair material into the cone and cover with the upper filter
2. Bone marrow extraction
Choose the anterior superior iliac spine or posterior iliac as the bone marrow puncture point. Use a syringe containing heparin saline to draw an appropriate amount of bone marrow. It is recommended to aspirate 2.5~5ml of bone marrow from each site and shake it immediately. The total amount is 5 per gram of bone graft material. ~6ml bone marrow is appropriate. The bone marrow can also be obtained in the same way as above in the steps of implanting pedicle screws.
3. Cyclic enrichment
Inject the bone marrow into the cone, close the outer cover, and evenly press the handle of the bone growth enricher to the top of the bone and release it. After the bone marrow is completely refluxed and the handle returns to the original position, press the handle again to start the second cycle. Accumulate 4 to 5 times of the above enrichment operations.
4. Material transplantation
Open the outer cover and rotate the cone counterclockwise to remove the cone from the base. According to the needs of the operation, the bone repair material can be taken out and directly implanted in the desired bone graft area, or the intervertebral fusion cage or titanium cage can be inserted into the desired site.
Features
Specifications
Model Composition Material
FWS-WJ-002A Circulatory system Syringe holder Acrylonitrile, butadiene and styrene
Syringe piston Silica gel
Body, lower cover, upper cover Acrylonitrile, butadiene and styrene
Filtration system Filter material Acrylonitrile, butadiene and styrene+Stainless steel 316L
Vertebral cup, rotating seat, filter cover, vertebral cup cover Polypropylene
Scope of application
All non-structural bone grafting operations that need to increase osteogenic activity, especially large-segment bone tissue repair, long-segment spine fusion, and other operations that require large bone repair materials.
