Proximal Femur Intramedullary Nail

Proximal Femur Intramedullary Nail

Product Summary：

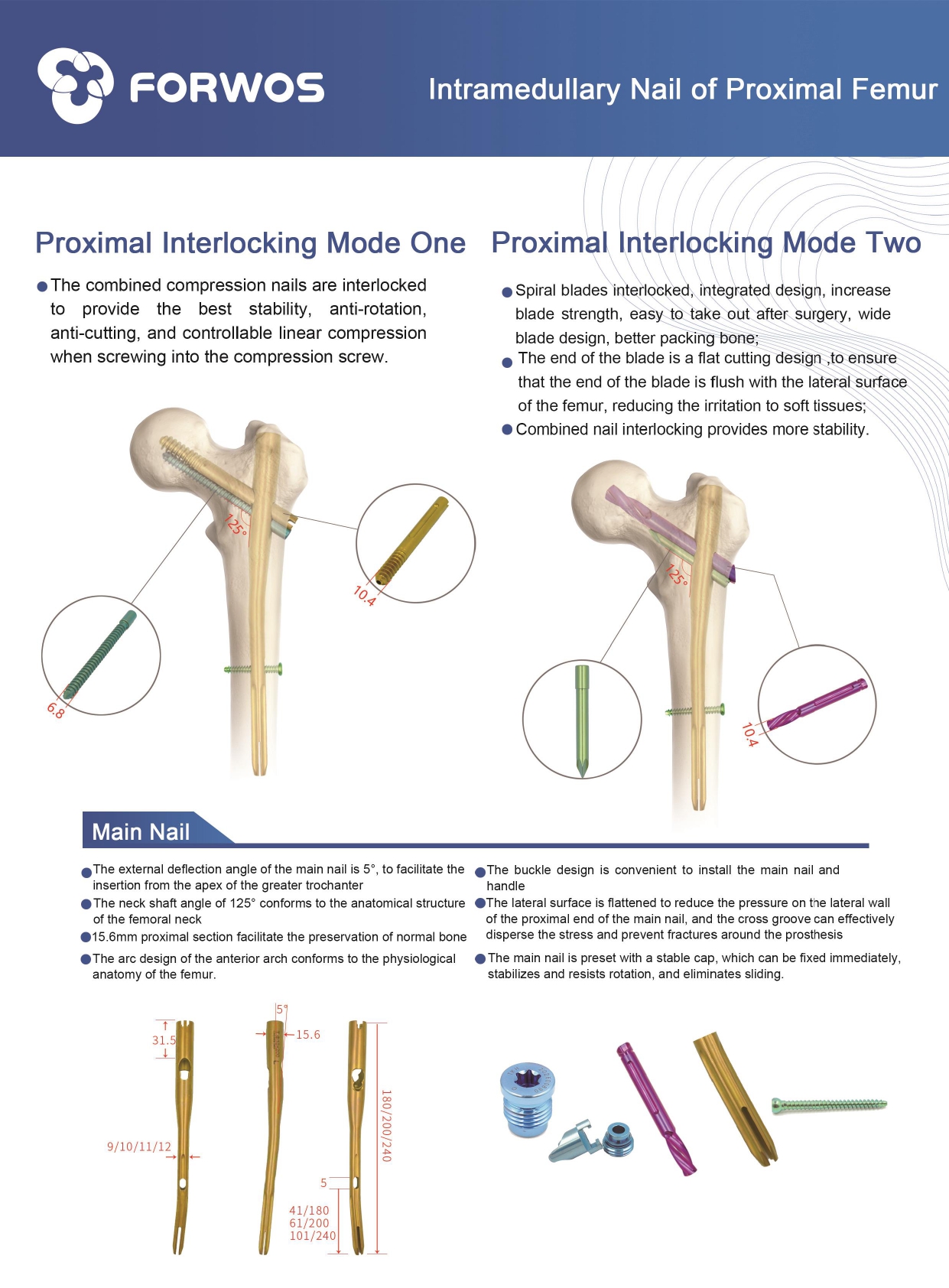

Proximal Interlocking Mode One
The combined compression nails are interlocked to provide the best stability, anti-rotation, anti-cutting, and controllable linear compression when screwing into the compression screw.

Proximal Interlocking Mode Two
Spiral blades interlocked, integrated design, increase blade strength, easy to take out after surgery, wide blade design, better packing bone;
The end of the blade is a flat cutting design to ensure that the end of the blade is flush with the lateral surface of the femur, reducing the irritation to soft tissues;
Combined nail interlocking provides more sability.

Instructions
Opening, reaming, putting of the main nail;
Construction of the positioning frame, putting of the guide pin;
Opening proximal segment, putting of the proximal joint compression nail or spiral blade;
Distal locking according to the positioning frame, and implantation of the screw cap.

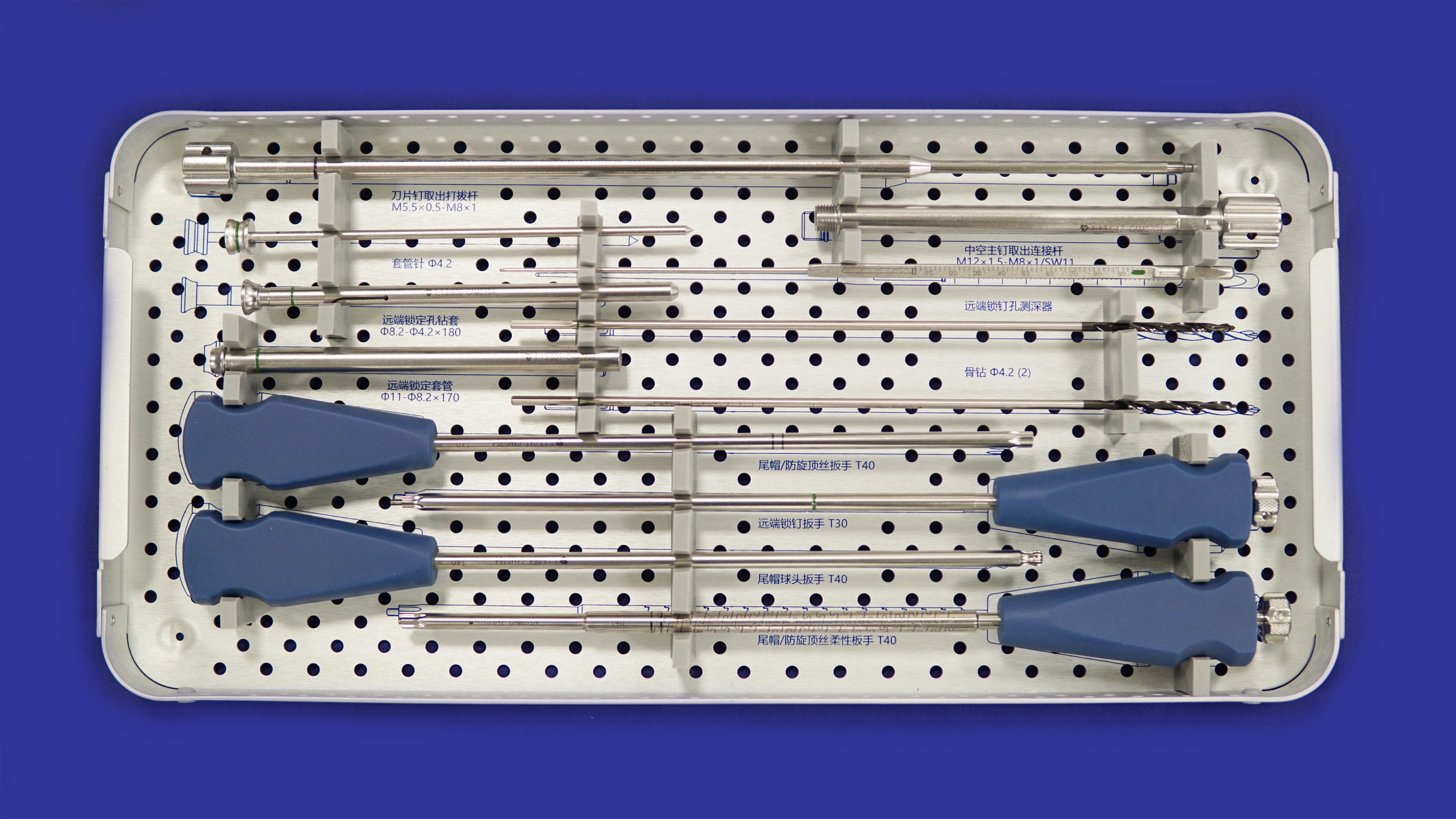

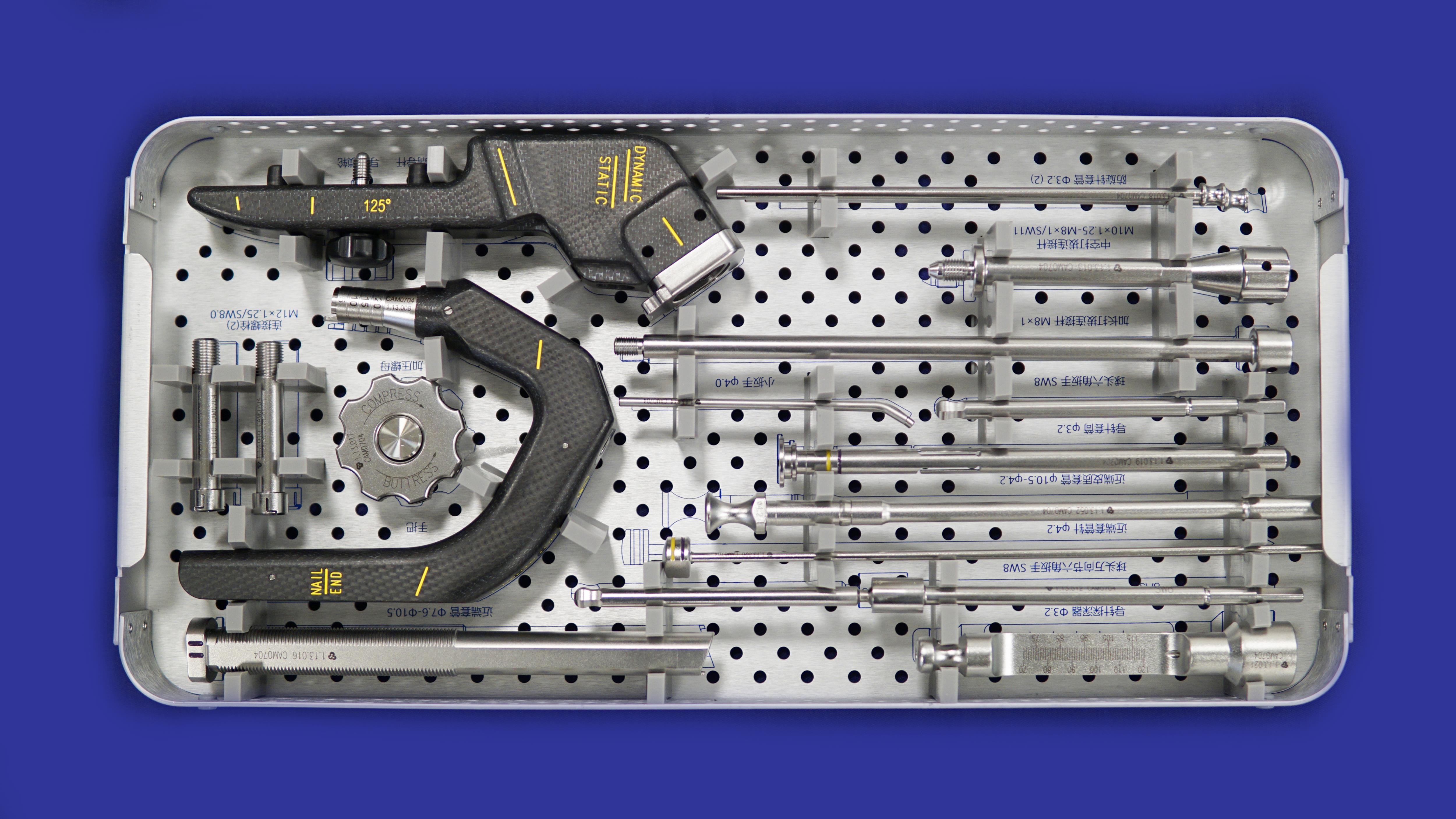

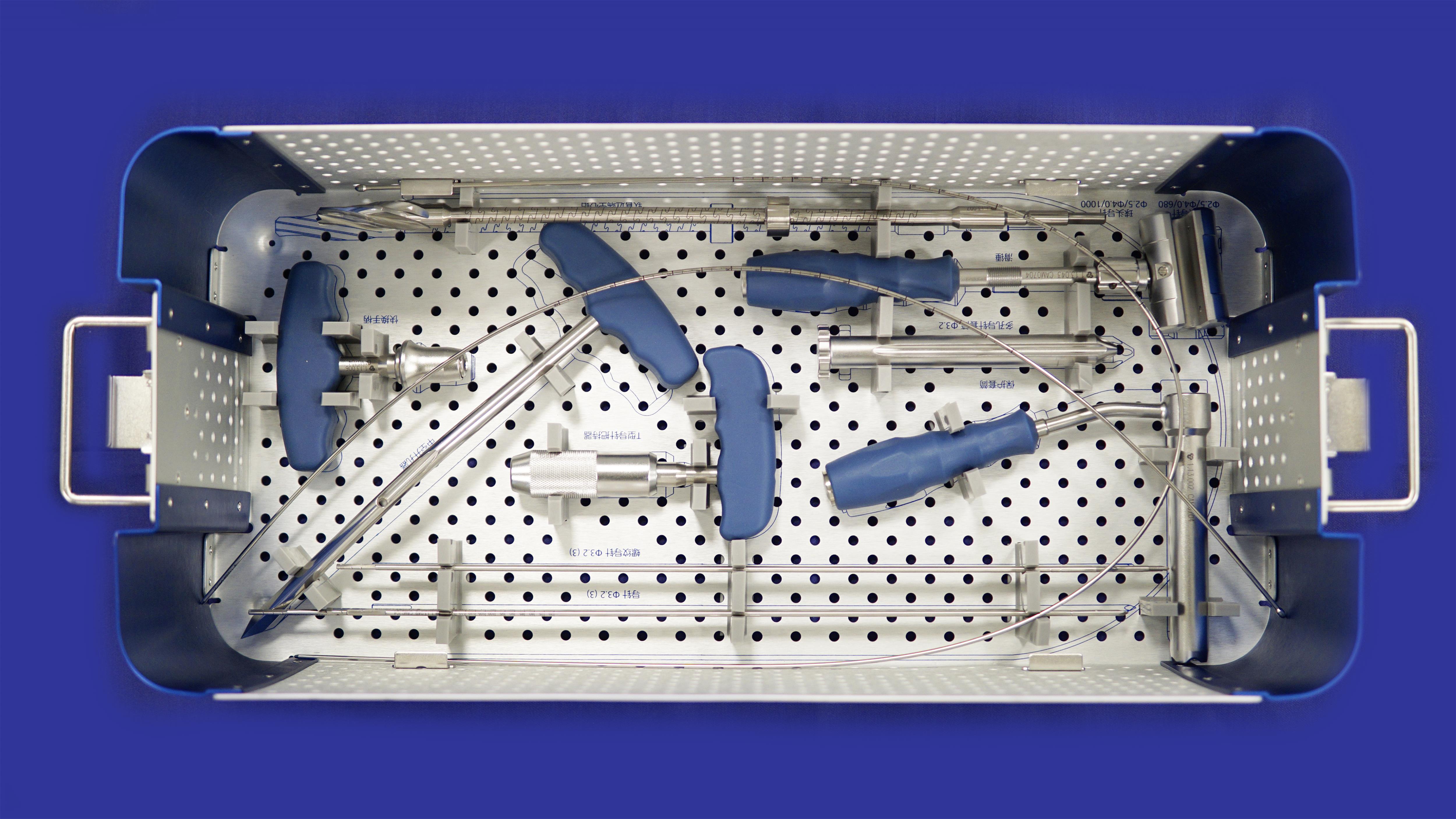

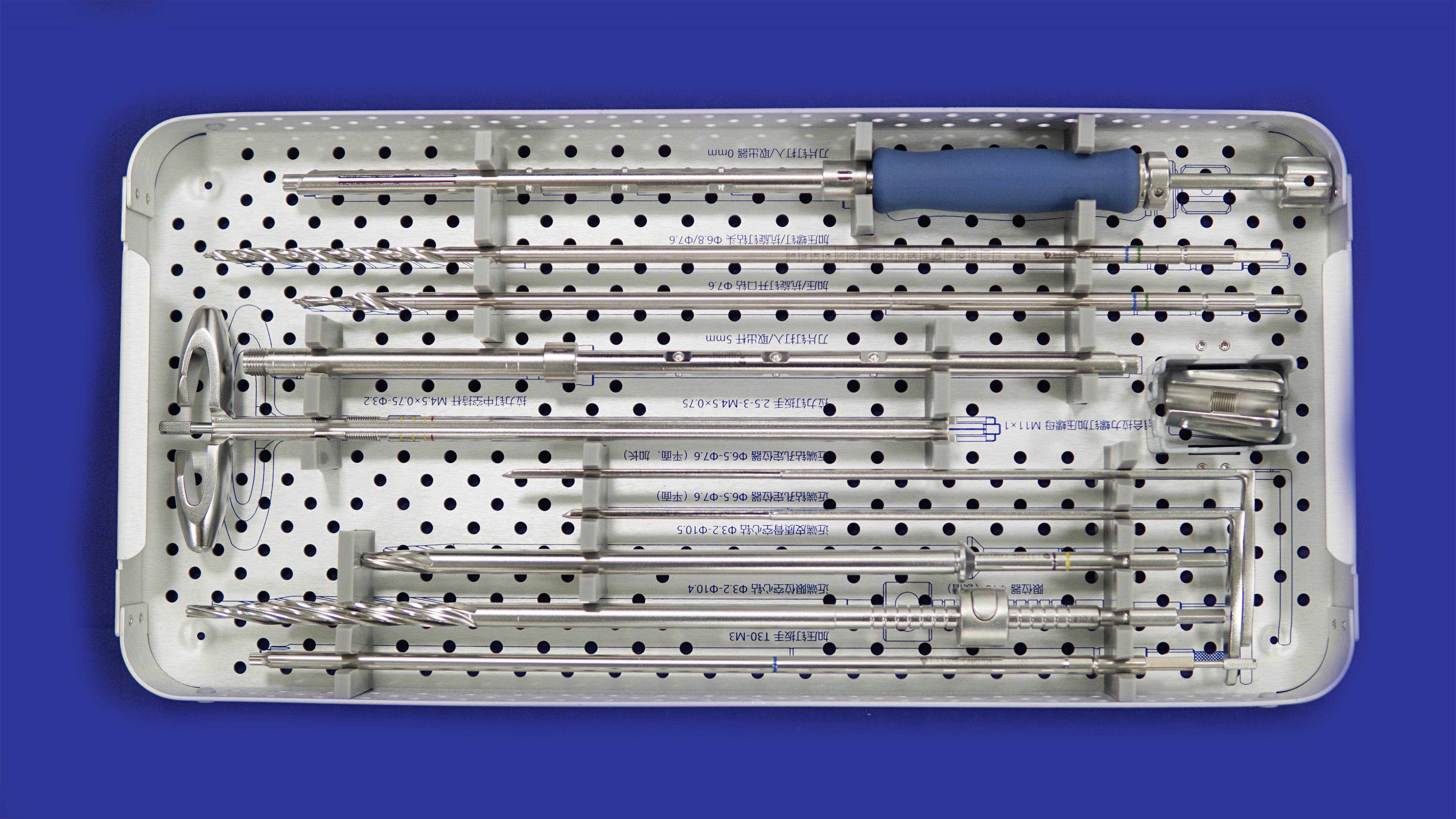

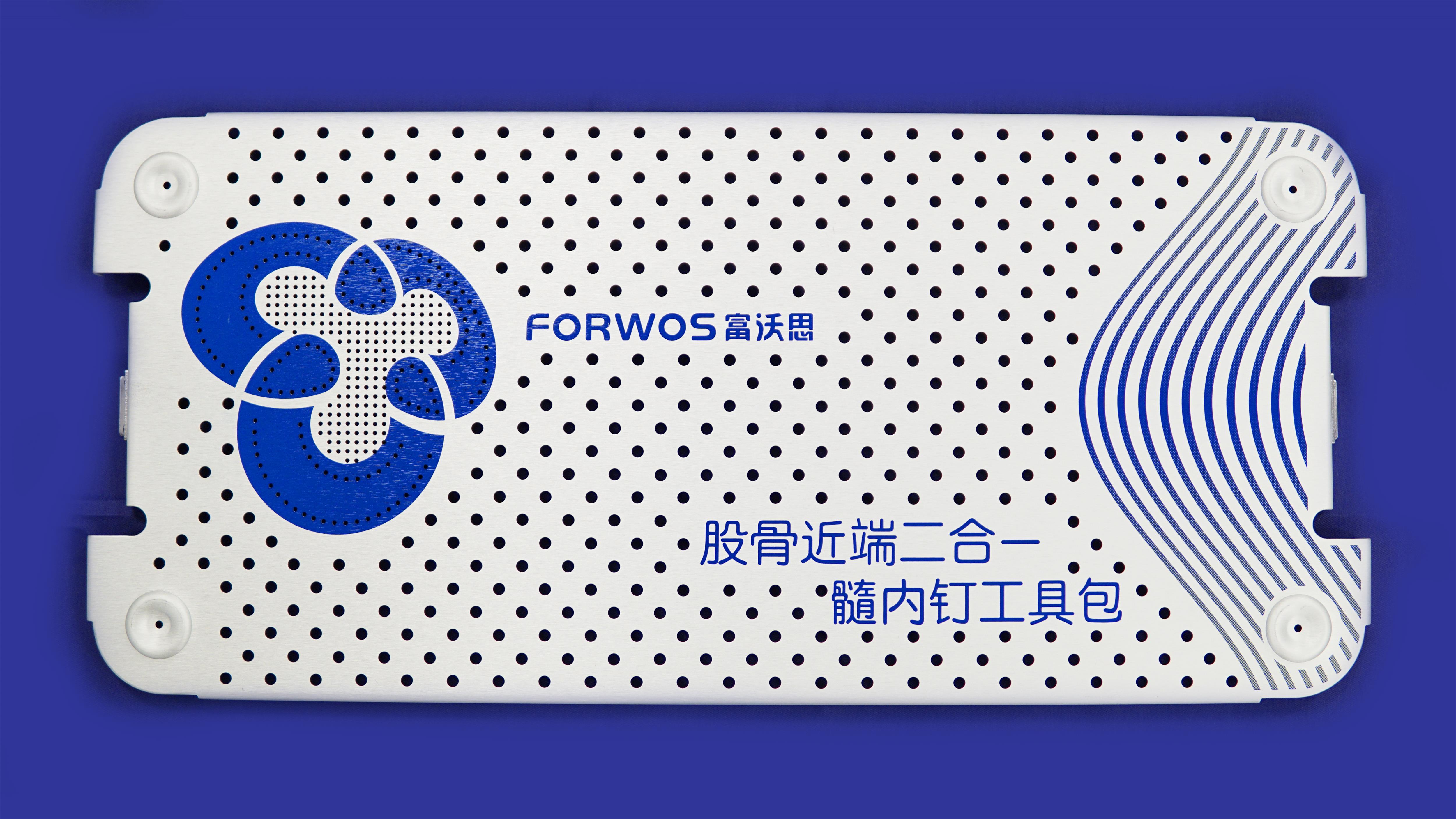

  • Orthopedic instrument set

Features
Proximal Interlocking Mode
Specifications
Intramedullary Nail
Product Type Model Diameter(mm)
Interlocking Nail SGM-ⅡK φ 9*180、φ10*180、φ11*180、φ12*180
SGM-ⅡK (left)  φ9*200、φ10*200、φ11*200、φ12*200
SGM-ⅡK (right) φ9*200、φ10*200、φ11*200、φ12*200
SGM-ⅡK (left) φ9*240、φ10*240、φ11*240、φ12*240
SGM-ⅡK (right) φ9*240、φ10*240、φ11*240、φ12*240
SGM-ⅡK (left) φ9*300、φ9*320、φ9*340、φ9*360、φ9*380、φ9*400、φ9*420
SGM-ⅡK (right) φ9*300、φ9*320、φ9*340、φ9*360、φ9*380、φ9*400、φ9*420
SGM-ⅡK (left) φ10*300、φ10*320、φ10*340、φ10*360、φ10*380、φ10*400、φ10*420
SGM-ⅡK (right) φ10*300、φ10*320、φ10*340、φ10*360、φ10*380、φ10*400、φ10*420
SGM-ⅡK (left) φ11*300、φ11*320、φ11*340、φ11*360、φ11*380、φ11*400、φ11*420
SGM-ⅡK (right) φ11*300、φ11*320、φ11*340、φ11*360、φ11*380、φ11*400、φ11*420
SGM-ⅡK (left) φ12*300、φ12*320、φ12*340
SGM-ⅡK (right) φ12*300、φ12*320、φ12*340

Spiral blades

Product Type Model Diameter(mm)
Spiral blades SGM-ⅡK φ10.5*70、φ10.5*75、φ10.5*80、φ10.5*85、φ10.5*90、φ10.5*95、φ10.5*100、φ10.5*105、φ10.5*110、φ10.5*115、φ10.5*120

The combiled compression nail
Product Type Model Diameter(mm)
The combined compression nails SGM-ⅡS φ10.5*70、φ10.5*75、φ10.5*80、φ10.5*85、φ10.5*90、φ10.5*95、φ10.5*100、φ10.5*105、φ10.5*110、φ10.5*115、φ10.5*120
Scope of application
  • Subtrochanteric Femoral Fractures;
  • Femoral neck fracture combined with femoral shaft fracture;
  • intertrochanteric fracture of femur combined with femoral shaft fracture.
