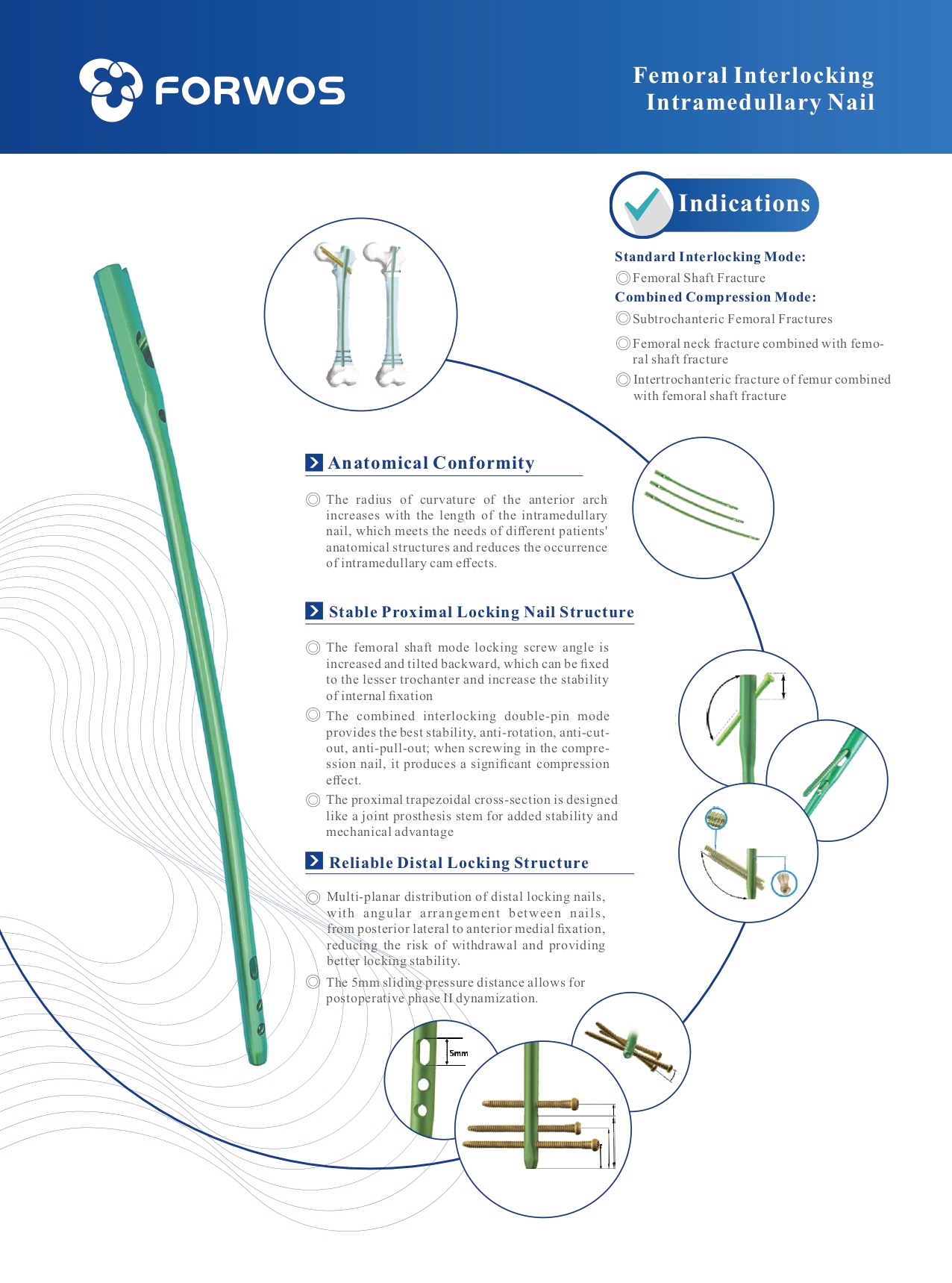

Femoral Interlocking Intramedullary Nail

Femoral Interlocking Intramedullary Nail

Product Summary：

Used in femur fracture surgery.

Instructions
Opening, reaming, putting of the main nail;
Construction of the positioning frame, putting of the guide pin;
Opening proximal segment, putting of the proximal joint compression nail or spiral blade;
Distal locking according to the positioning frame, and implantation of the screw cap.

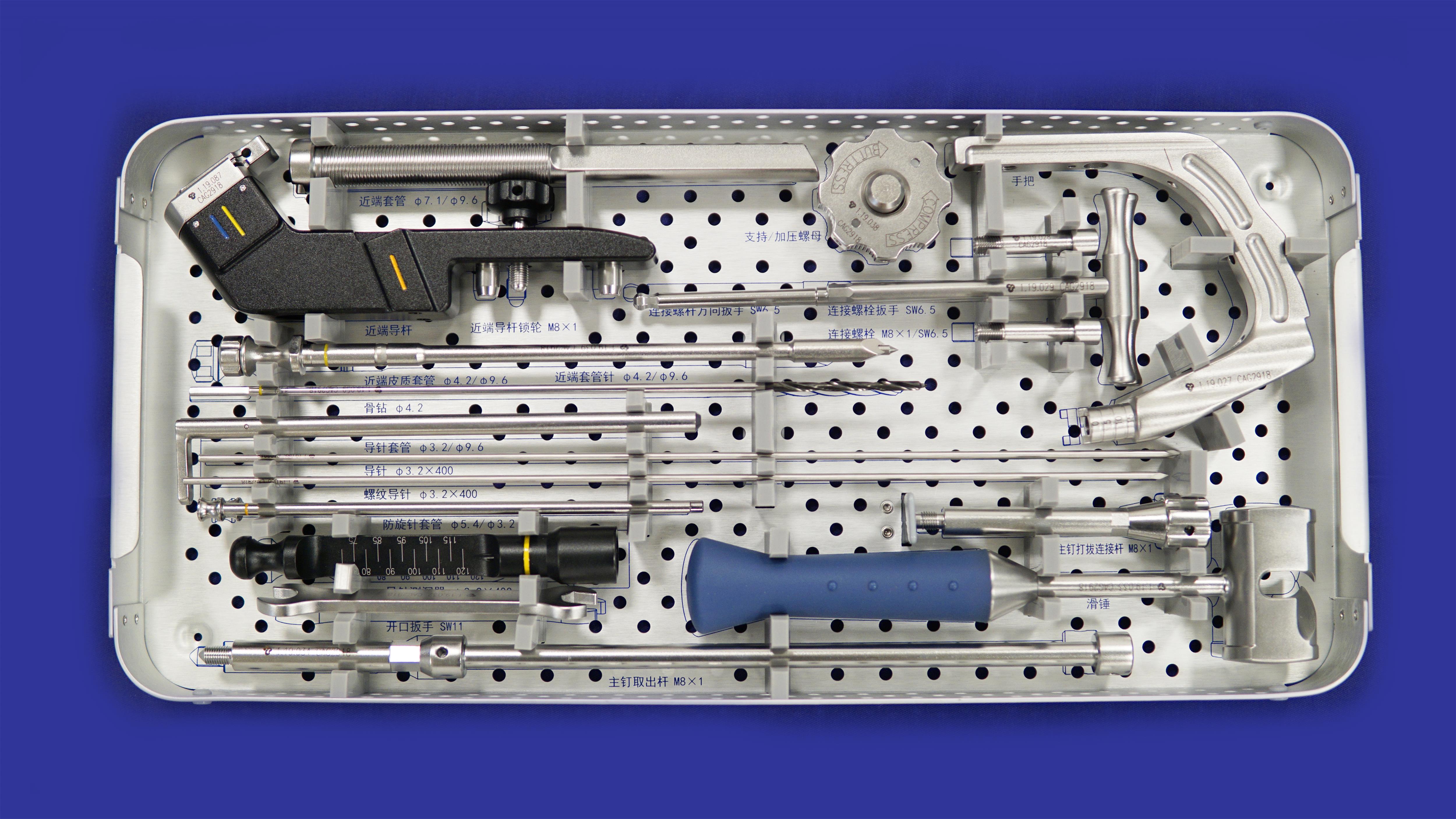

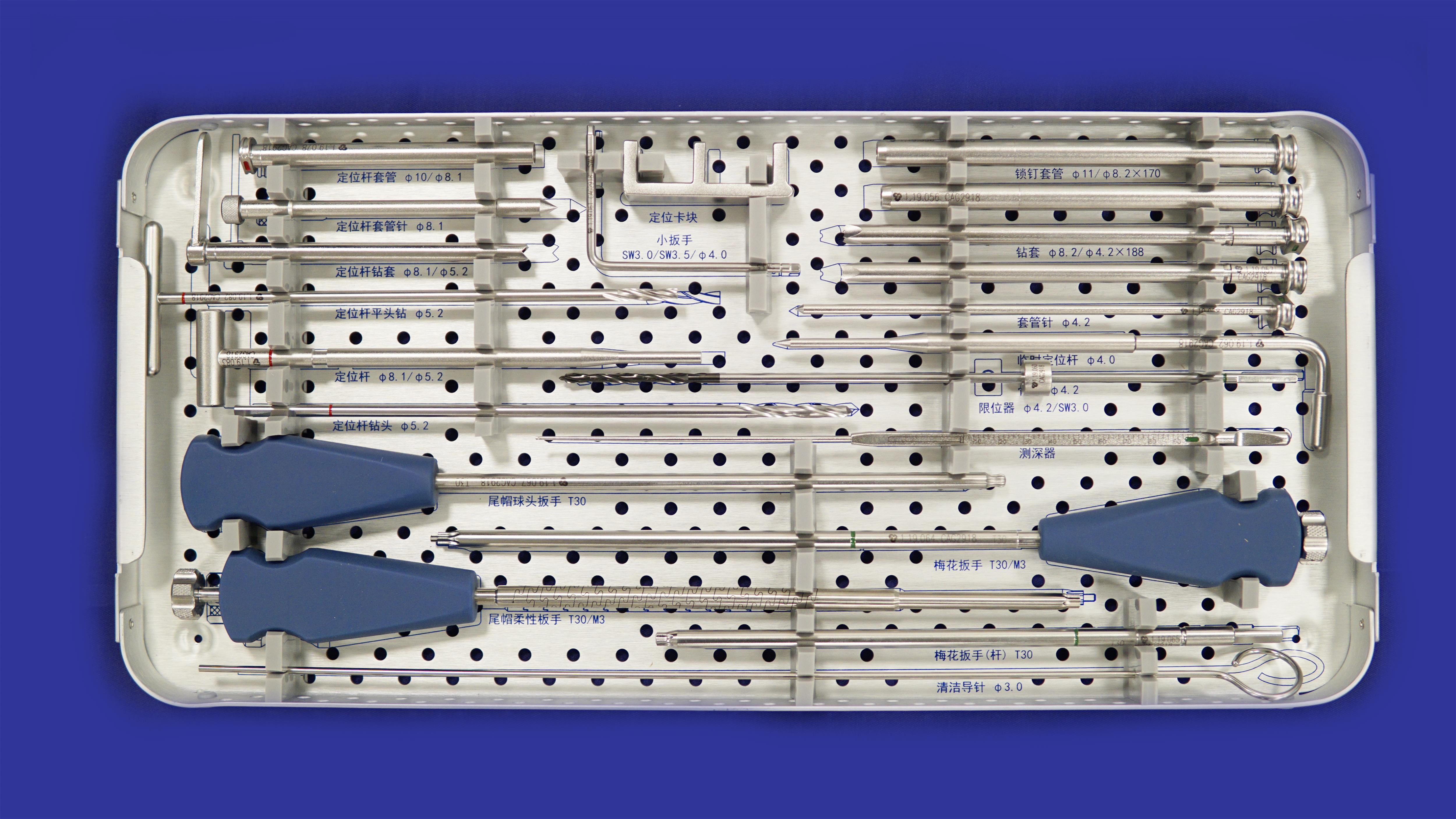

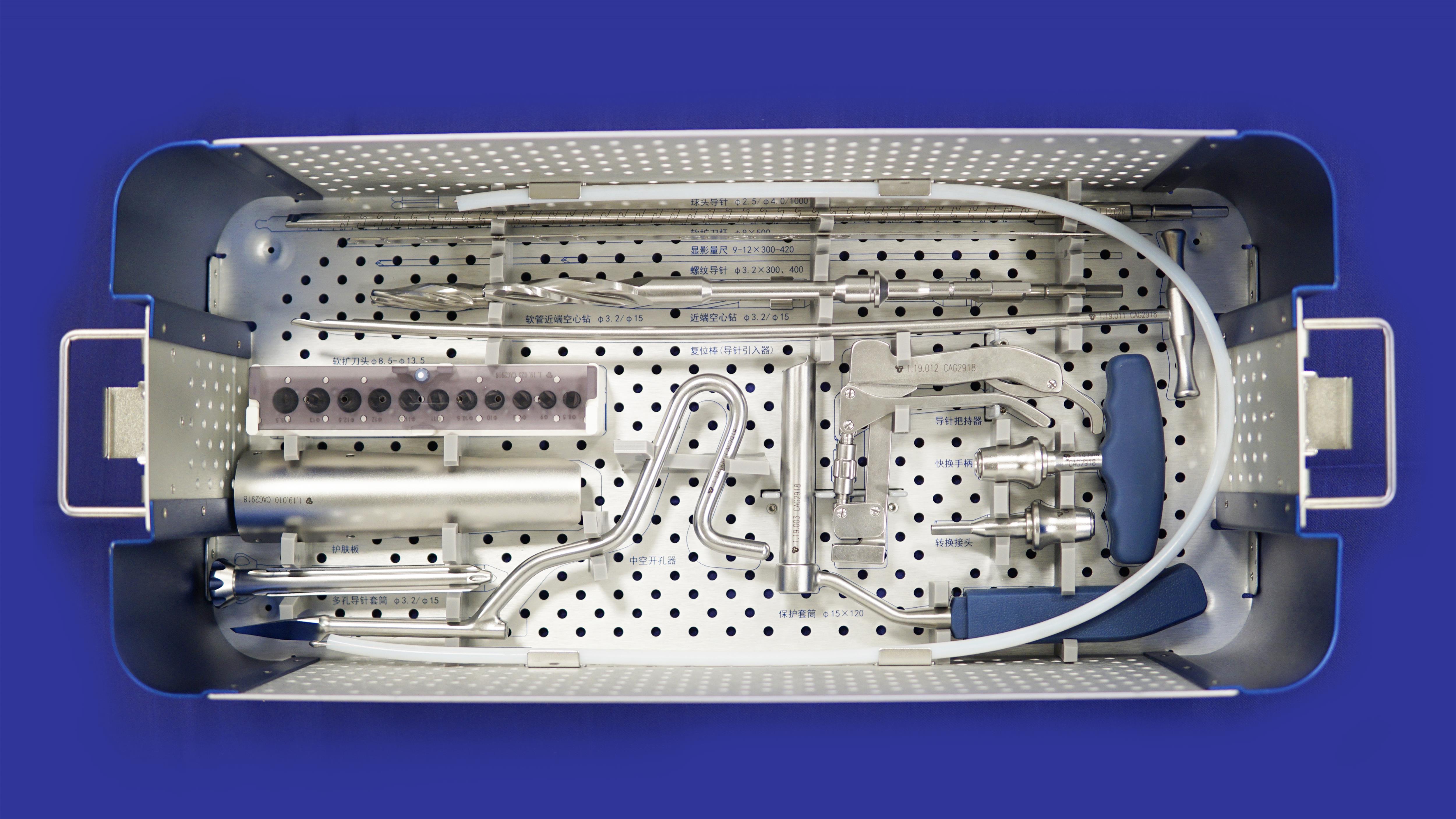

  • Orthopedic instrument set

Features
Specifications
Interlocking intramedullary nail
Product Type Model Diameter
Interlocking intramedullary nail SGG-ⅡK (left) φ9*300、φ9*320、φ9*340、φ9*360、φ9*380
SGG-ⅡK (right) φ9*300、φ9*320、φ9*340、φ9*360、φ9*380、φ9*400
SGG-ⅡK (left) φ10*320、φ10*340、φ10*360、φ10*380、φ10*400
SGG-ⅡK (right) φ10*320、φ10*340、φ10*360、φ10*380、φ10*400
SGG-ⅡK (left) φ11*320、φ11*340、φ11*360、φ11*380、φ11*400
SGG-ⅡK (right) φ11*320、φ11*340、φ11*360、φ11*380、φ11*400
SGG-ⅡK (left) φ12*320、φ12*340、φ12*360、φ12*380、φ12*400、φ12*420
SGG-ⅡK (right) φ12*320、φ12*340、φ12*360、φ12*380、φ12*400、φ12*420

Locking nail
Product Type Model Diameter
Locking nail SGM-ⅡK φ10*30
Scope of application
  • Standard Interlocking Mode
  1. femoral Shaft Fracture.
  • Combined Compression Mode
  1. Subtrochanteric Femoral Fractures;
  2. Femoral neck fracture combined with femoral shaft fracture;
  3. Intertrochanteric fracture of femur combined with femoral shaft fracture.
