Tibial Intramedullary Nail

Tibial Intramedullary Nail

Product Summary：

Being updated.

Instructions
  1. Opening, reaming, implanting the main nail;
  2. Building the positioning frame and locking the distal end according to the positioning frame;
  3. Adjusting the proximal handle and implant the proximal locking nail as instructed;
  4. Installing the screw cap.

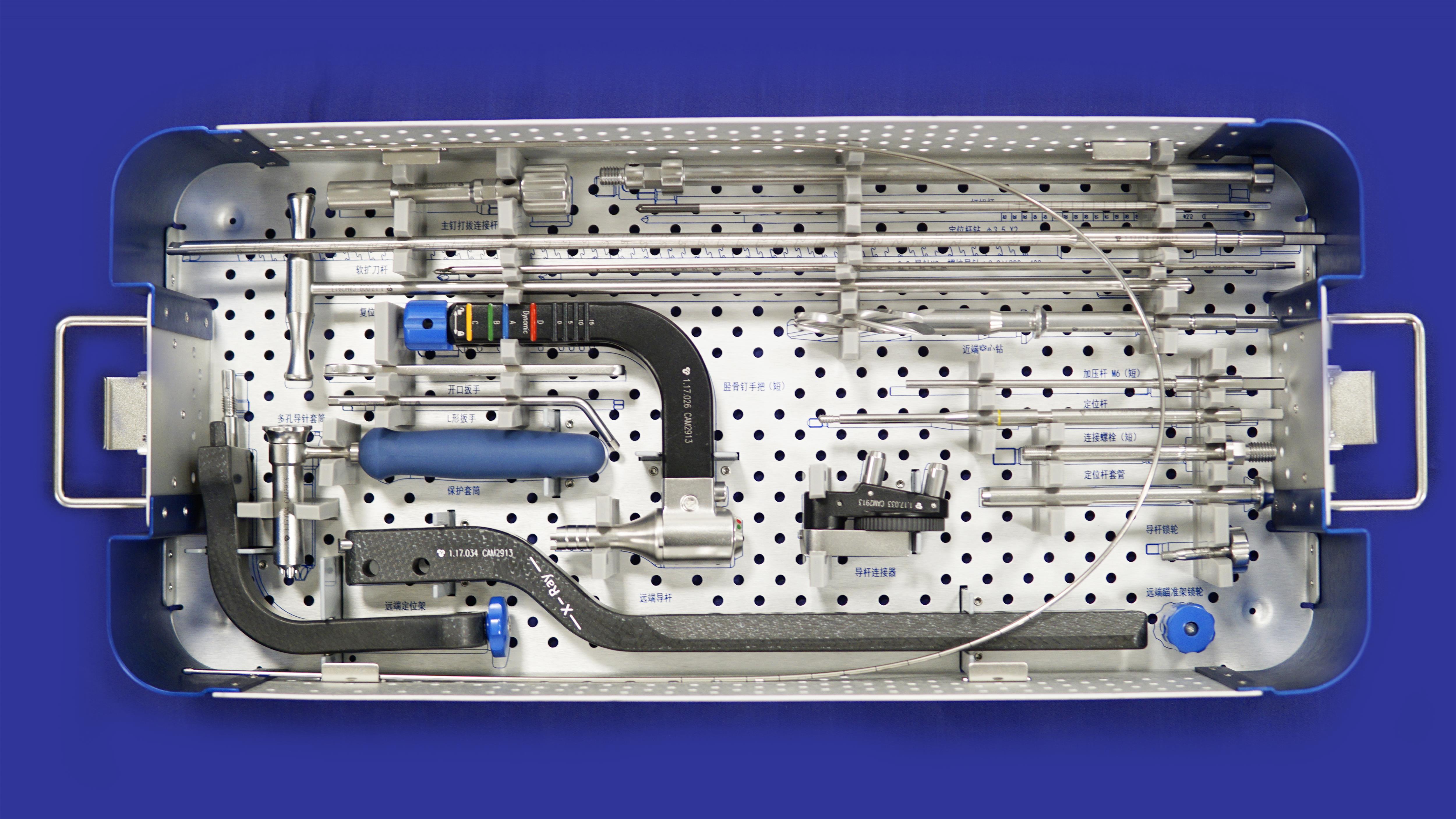

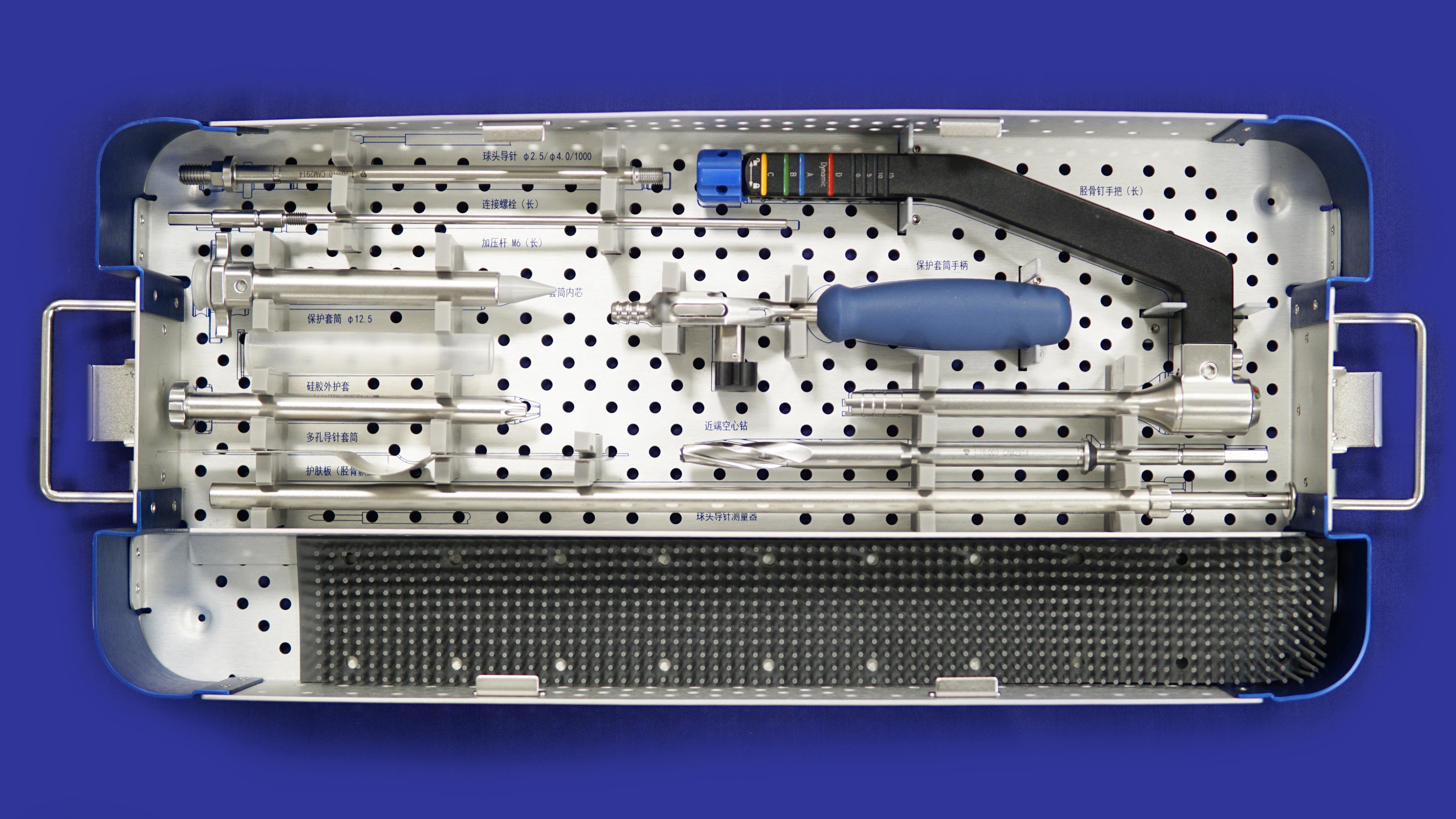

  • Orthopedic instrument set
1.Standard Version





2.Patella Version

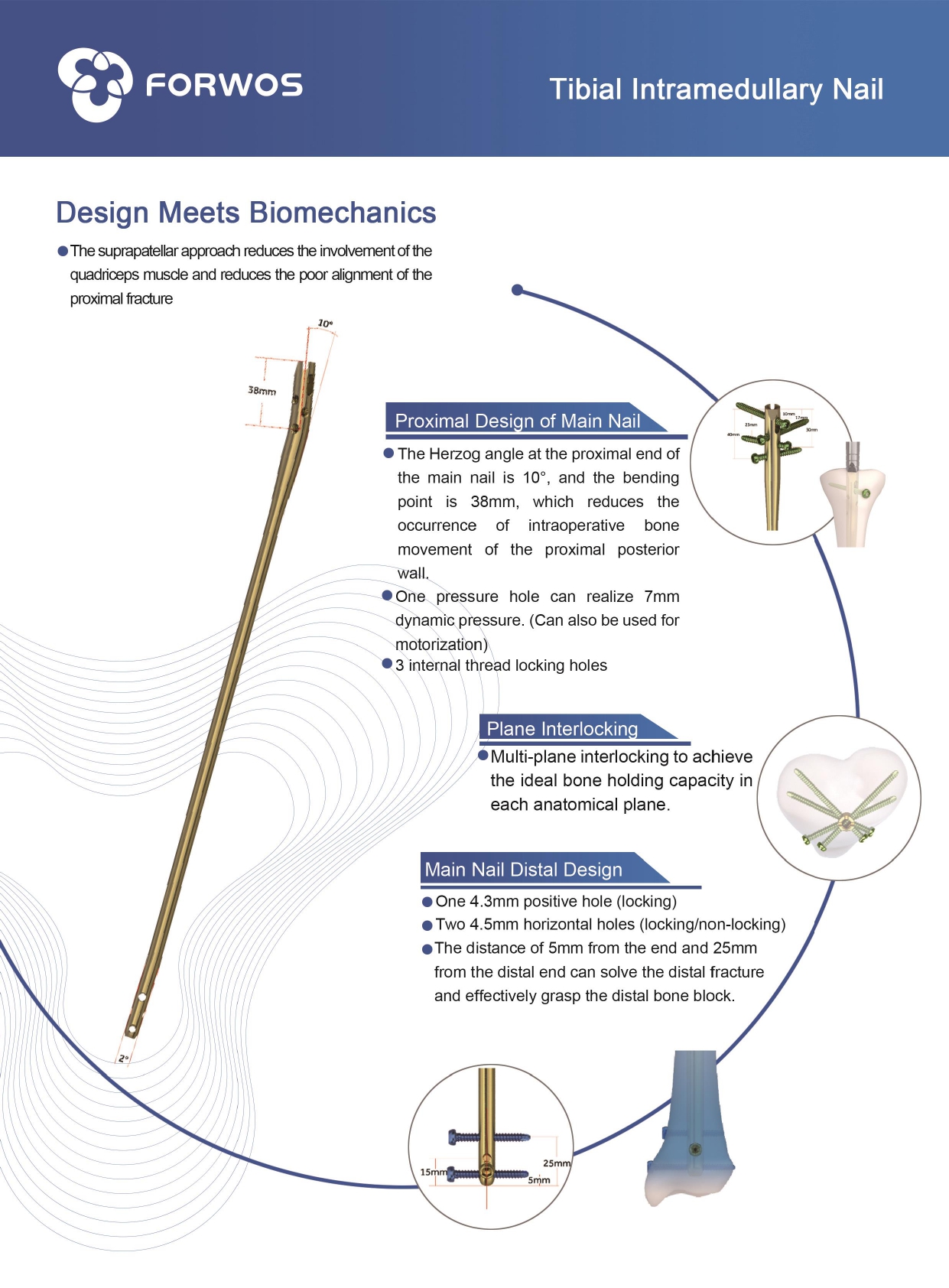

Features
Specifications
Intramedullary Nail
Product Type Model Diameter(mm)
Intramedullary nail SJGK φ8.5*250、φ8.5*265、φ8.5*280、φ8.5*295、φ8.5*310、φ8.5*325、φ8.5*340、φ8.5*355、φ8.5*370、φ8.5*385、φ8.5*400
SJGK φ9*250、φ9*265、φ9*280、φ9*295、φ9*310、φ9*325、φ9*340、φ9*355、φ9*370、φ9*385、φ9*400
SJGK φ10*250、φ10*265、φ10*280、φ10*295、φ10*310、φ10*325、φ10*340、φ10*355、φ10*370、φ10*385、φ10*400
SJGK φ11*250、φ11*265、φ11*280、φ11*295、φ11*310、φ11*325、φ11*340、φ11*355、φ11*370、φ11*385、φ11*400

Locking nail(SJGKφ4.5)：used for distal platform hole fixing
Product Type Model Diameter(mm)
Locking nail SJGK φ4.5*25、φ4.5*30、φ4.5*35、φ4.5*40、φ4.5*45、φ4.5*50

Locking nail(SJGSφ4.5): for distal tibial transverse hole
Product Type Model Diameter(mm)
Locking nail SJGS φ4.5*30、φ4.5*35、φ4.5*40、φ4.5*45、φ4.5*50、φ4.5*55

Locking nail(SJGKφ4.5): for proximal interlocking fixation
Product Type Model Diameter(mm)
Locking nail SJGK φ5.0*30、φ5.0*35、φ5.0*40、φ5.0*45、φ5.0*50、φ5.0*55、φ5.0*60、φ5.0*65、φ5.0*70、φ5.0*75、φ5.0*80

Screw cap（SJGK）
Product Type Model Diameter(mm)
Screw cap SJGK M6*12、M6*17、M6*22

Screw cap（SJGS）
Product Type Model Diameter(mm)
Screw cap SJGS M6*12
Scope of application
Fracture of the middle tibia, fracture of the lower 1/3 of the tibia.
