Instructions
Trauma Surgery to humeral fracture fixation.
Features
Structure and composition: The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.
Product material: TA3G pure titanium sheet.
Certificate: CE/ISO 13485
Model Number: SDP-31

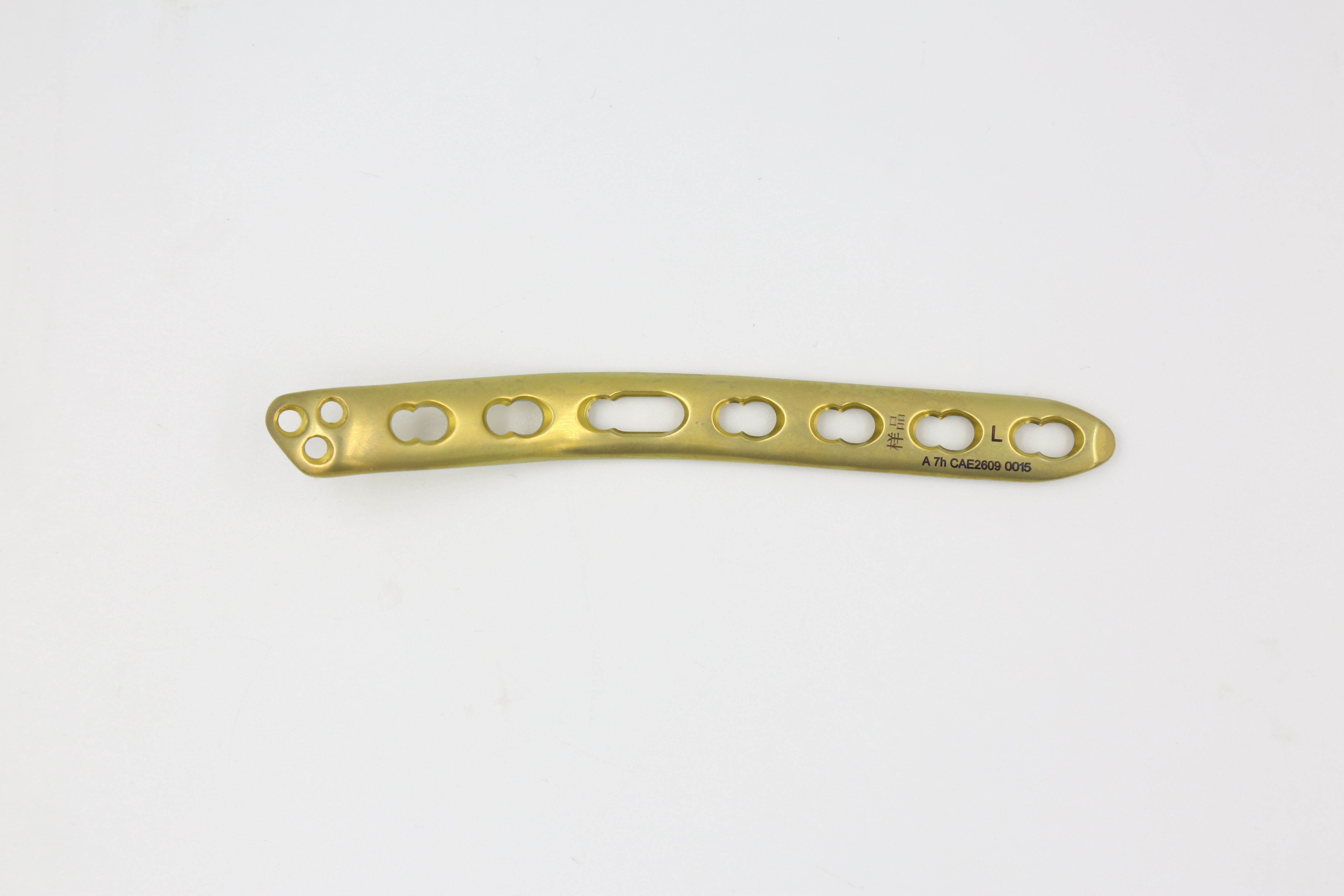

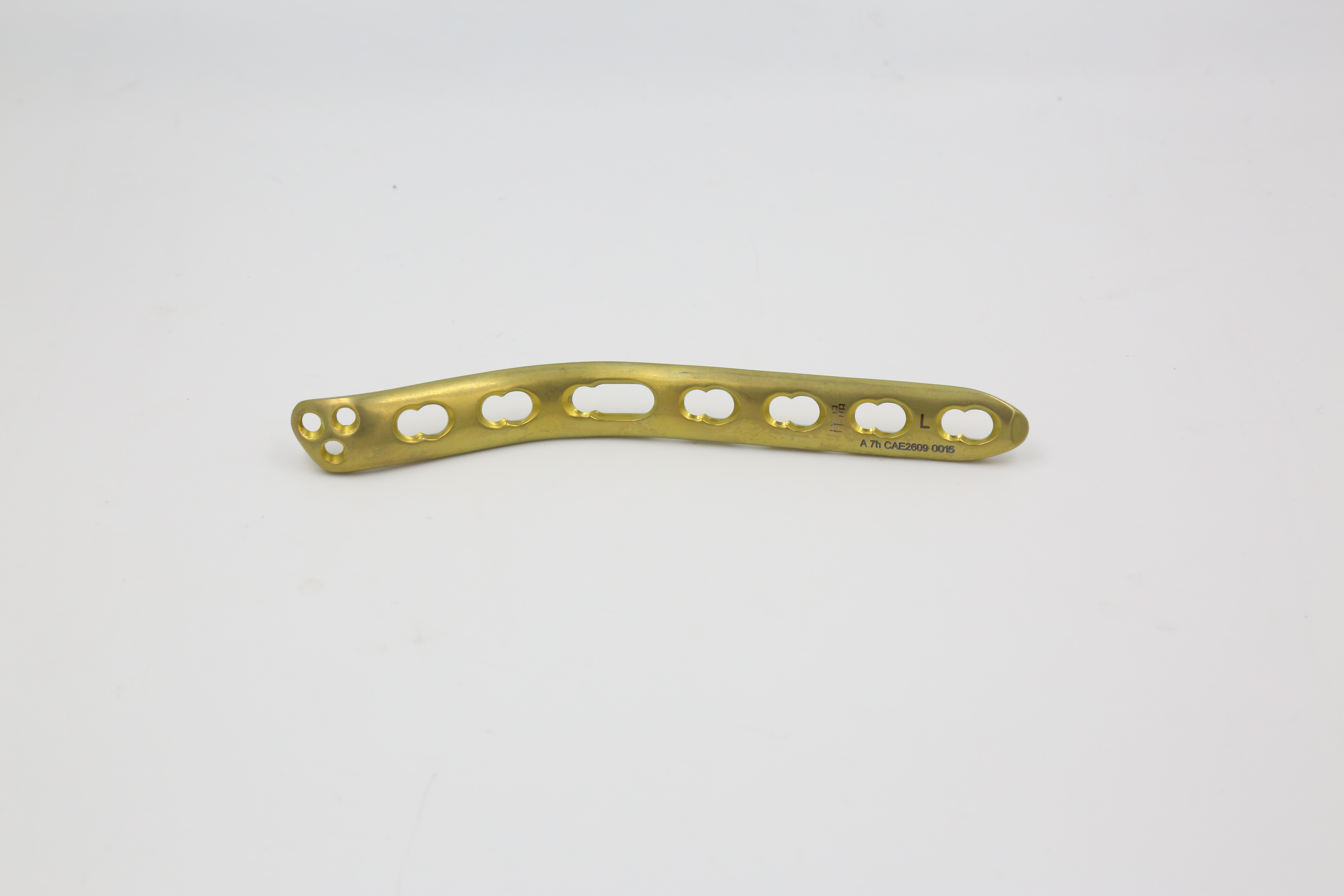

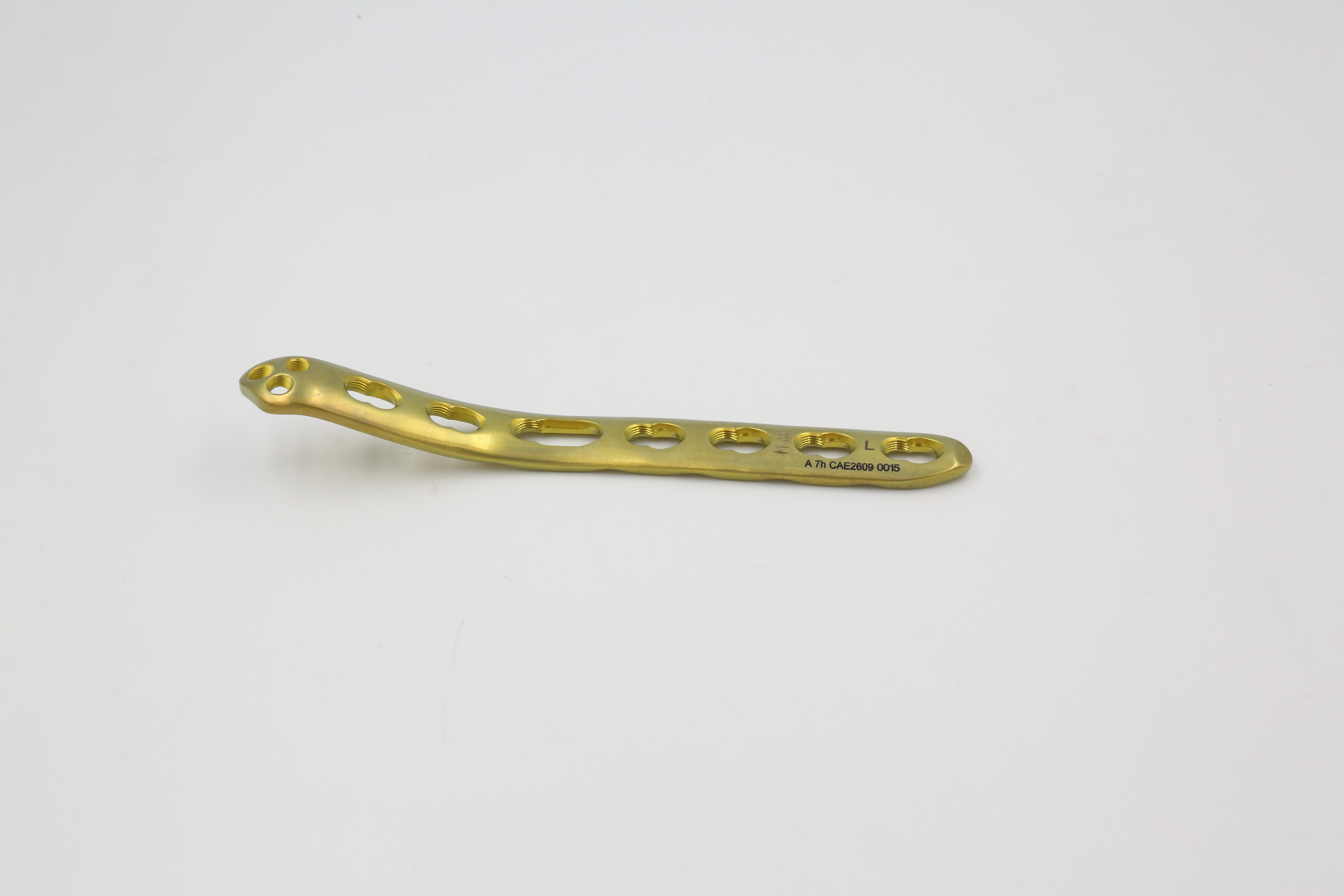

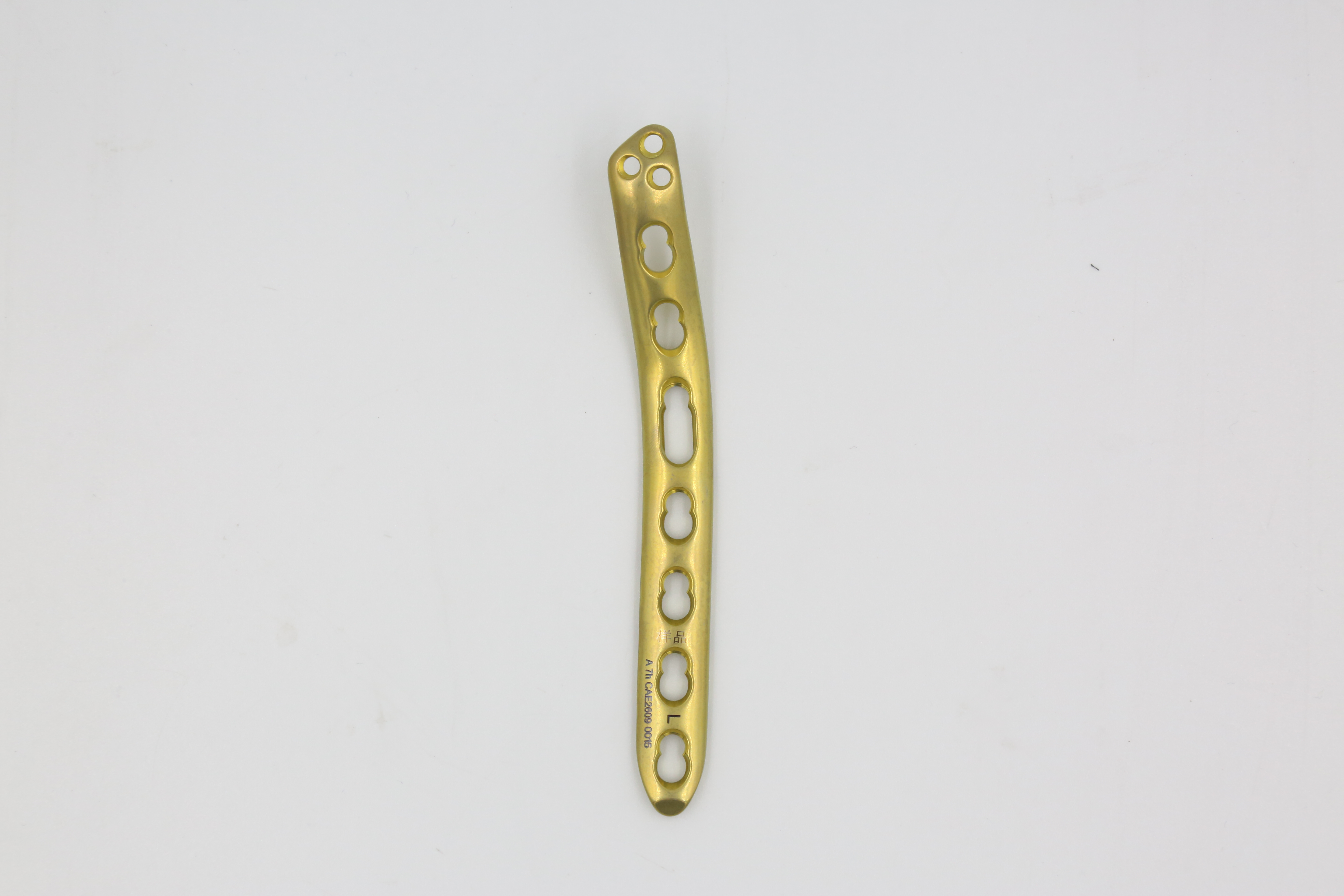

The distal humerus medial locking plate heads with 2.4/2.7 locking screws, Bing locking holes with 3.5 locking screws used.
Specifications
| Product Type |
Model |
Length |
| Distal humerus medial locking plate |
SDP-31 3 holes left/right |
58 |
| Distal humerus medial locking plate |
SDP-31 4 holes left/right |
71 |
| Distal humerus medial locking plate |
SDP-31 5 holes left/right |
84 |
| Distal humerus medial locking plate |
SDP-31 6 holes left/right |
97 |
| Distal humerus medial locking plate |
SDP-31 7 holes left/right |
110 |
| Distal humerus medial locking plate |
SDP-31 8 holes left/right |
123 |
| Distal humerus medial locking plate |
SDP-31 9 holes left/right |
136 |
| Distal humerus medial locking plate |
SDP-31 10 holes left/right |
149 |
| Distal humerus medial locking plate |
SDP-31 11 holes left/right |
162 |
| Distal humerus medial locking plate |
SDP-31 12 holes left/right |
175 |
| Distal humerus medial locking plate |
SDP-31 13 holes left/right |
188 |
| Distal humerus medial locking plate |
SDP-31 14 holes left/right |
201 |
Scope of application
Scope of application: Suitable for internal fixation of limbs, clavicle, and pelvic fractures during orthopedic surgery.
