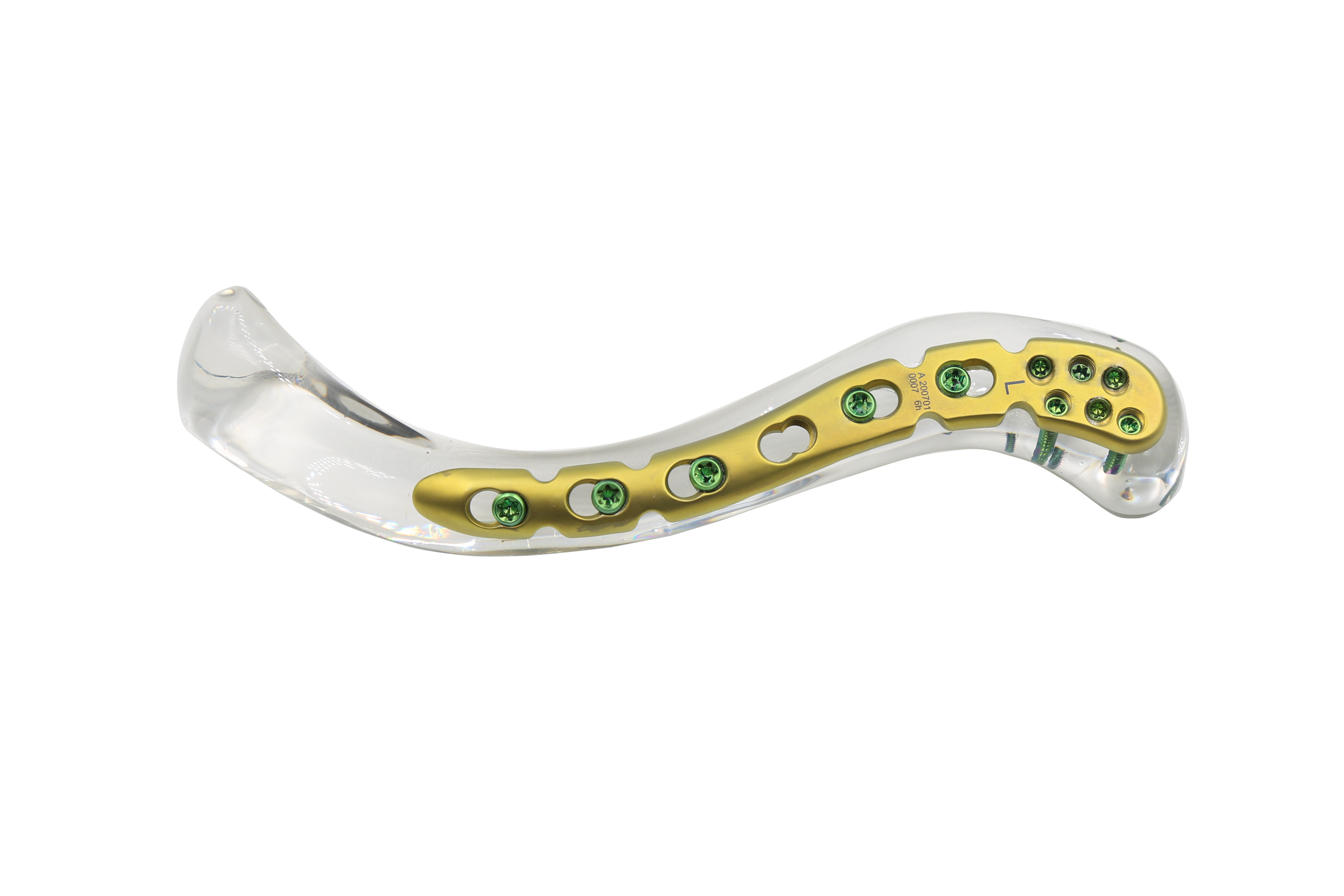

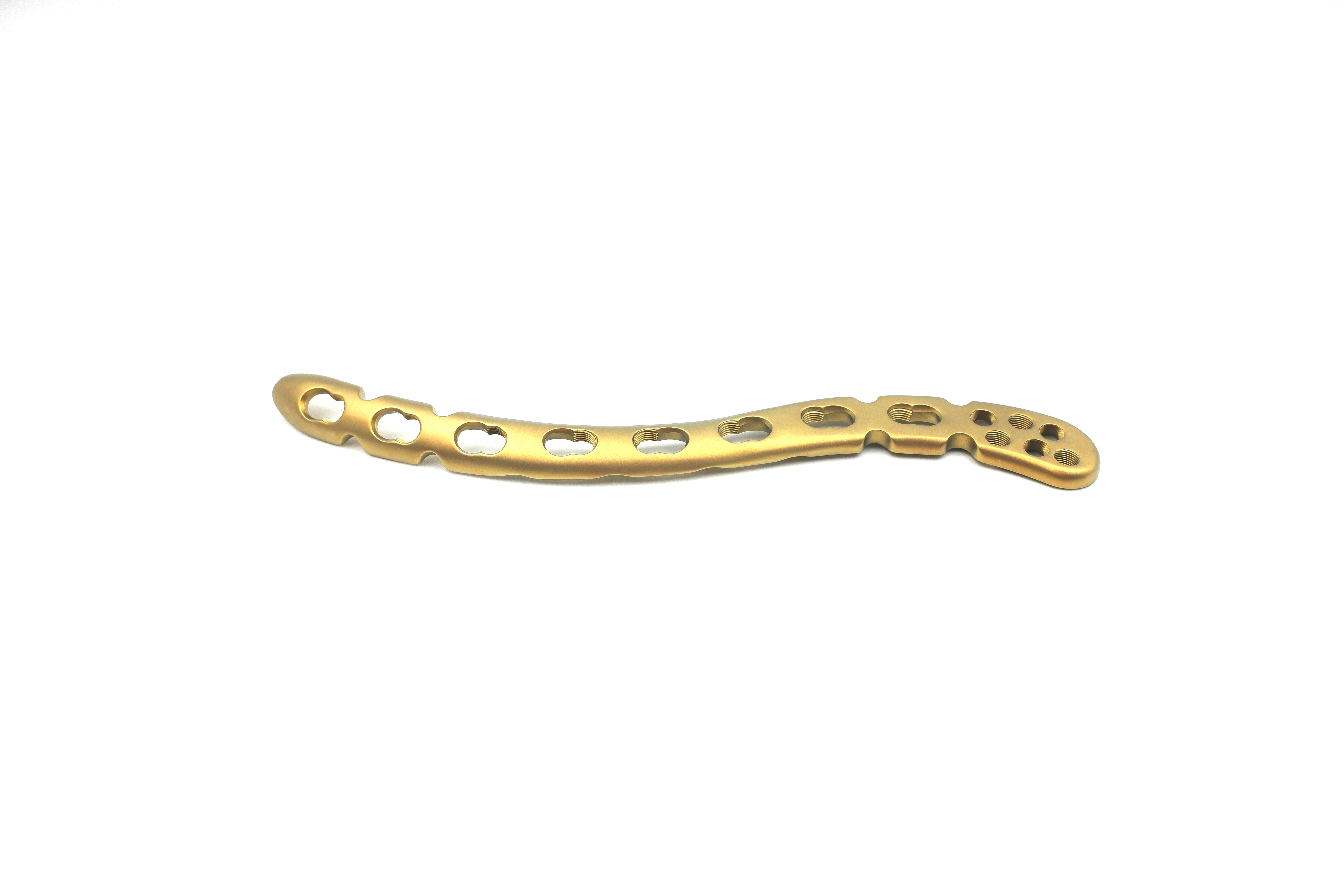

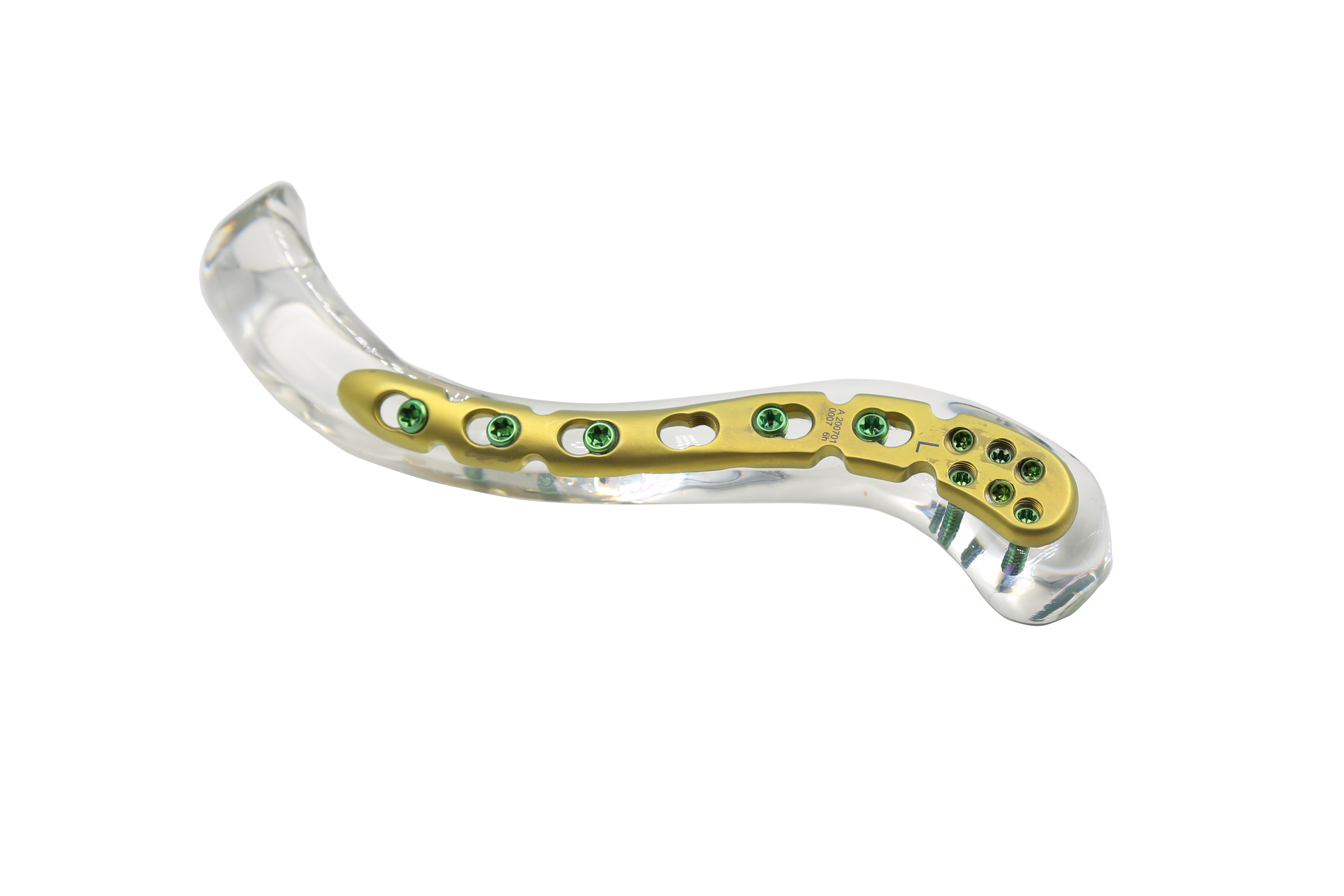

Clavicle S type locking plate-2

Clavicle S type locking plate-2

Product Summary：

The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Instructions
Being updated.
Features
Structure and composition:The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Product material: TA3G pure titanium sheet.

Certificate: CE/ISO 13485

Model Number: SDYZ-63

The distal humerus medial locking plate heads with 2.4/2.7 locking screws, Bing locking holes with 3.5 locking screws used.



Specifications

Number of holes 3~10 holes (6 holes in the head)
Type There are two types: left and right
Total length 66~162±3mm，every 14mm is a specification
width 10±2mm
Thickness 3.0±0.5mm

Product Type Model Length
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 67
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 81
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 95
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 109
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 121
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 135
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 145
Clavicle S type locking plate-2 SDYZ-63 3holes left/right 153
Scope of application
Suitable for internal fixation of clavicle fractures during orthopedic surgery.
