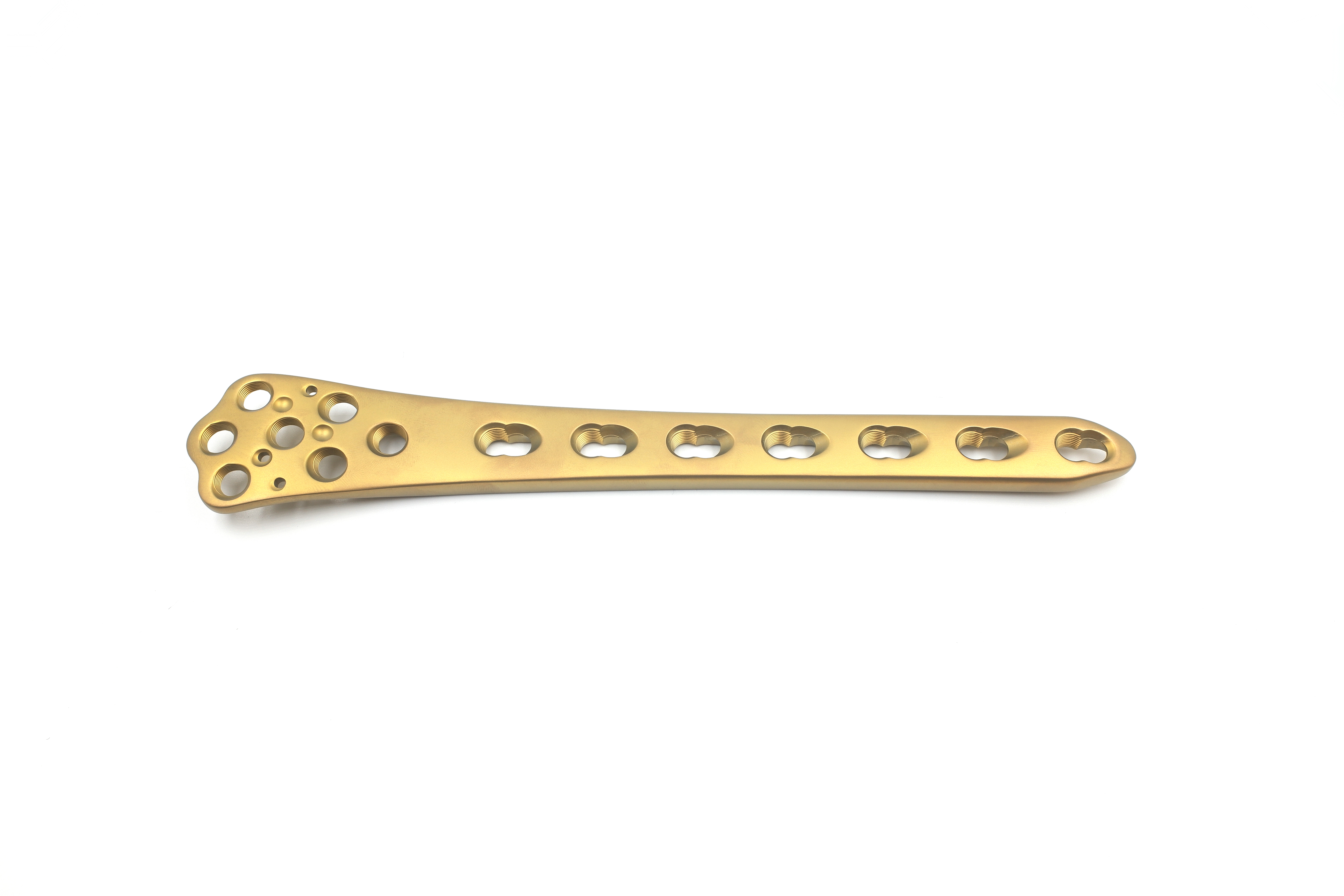

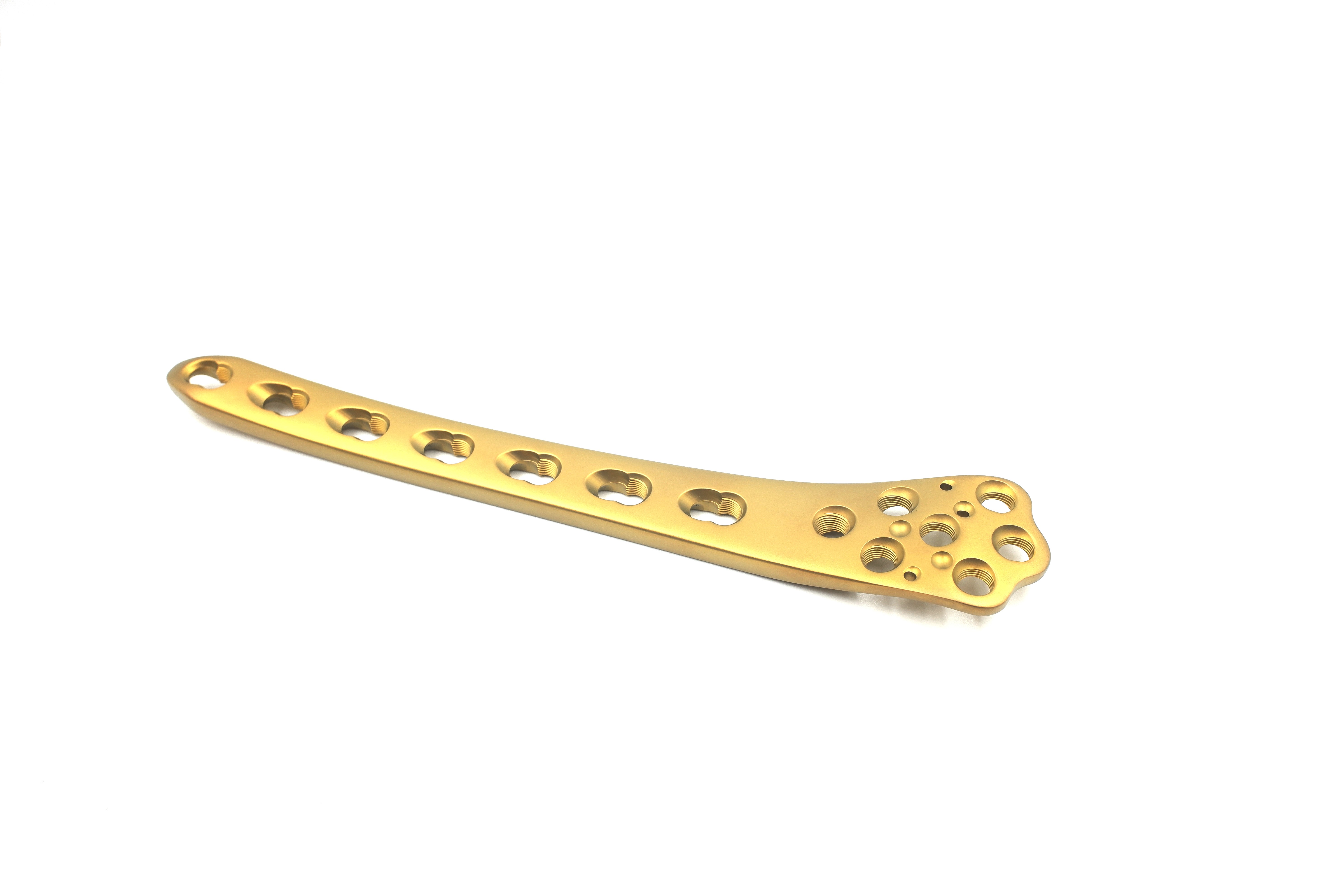

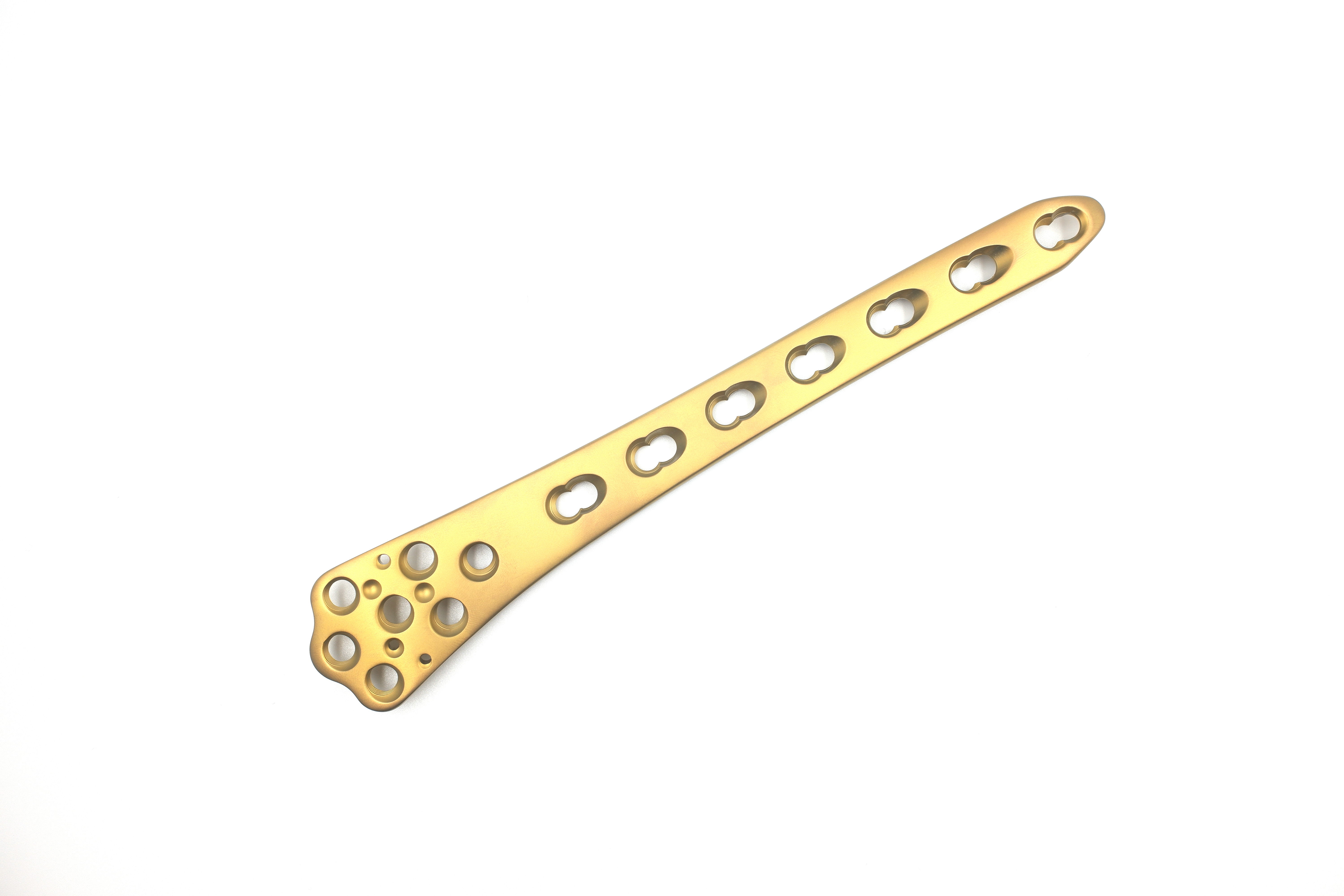

Distal femoral lateral locking plate

Distal femoral lateral locking plate

Product Summary：

The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Instructions
Being updated.
Features
Structure and composition:The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Product material: TA3G pure titanium sheet.

Certificate: CE/ISO 13485

Model Number: SDP-08

Distal femoral lateral locking plate locking hole with the use of 5.0 screws.


Specifications
Number of holes 4~18 holes ( 7 holes on head )
Type left & right
Total length 136~416±3mm，every 20mm is a specification
Width 16±2mm
Thickness 5.5±0.5mm

Product Type Model Length
Distal femoral lateral locking plate SDP-08 4 holes left/right 136
Distal femoral lateral locking plate SDP-08 5 holes left/right 156
Distal femoral lateral locking plate SDP-08 6 holes left/right 176
Distal femoral lateral locking plate SDP-08 7 holes left/right 196
Distal femoral lateral locking plate SDP-08 8 holes left/right 216
Distal femoral lateral locking plate SDP-08 9 holes left/right 236
Distal femoral lateral locking plate SDP-08 10 holes left/right 256
Distal femoral lateral locking plate SDP-08 11 holes left/right 276
Distal femoral lateral locking plate SDP-08 12 holes left/right 296
Distal femoral lateral locking plate SDP-08 13 holes left/right 316
Distal femoral lateral locking plate SDP-08 14 holes left/right 336
Distal femoral lateral locking plate SDP-08 15 holes left/right 356
Distal femoral lateral locking plate SDP-08 16 holes left/right 376
Distal femoral lateral locking plate SDP-08 17 holes left/right 396
Distal femoral lateral locking plate SDP-08 18 holes left/right 416

Scope of application
Internal fixation of femoral fractures.
