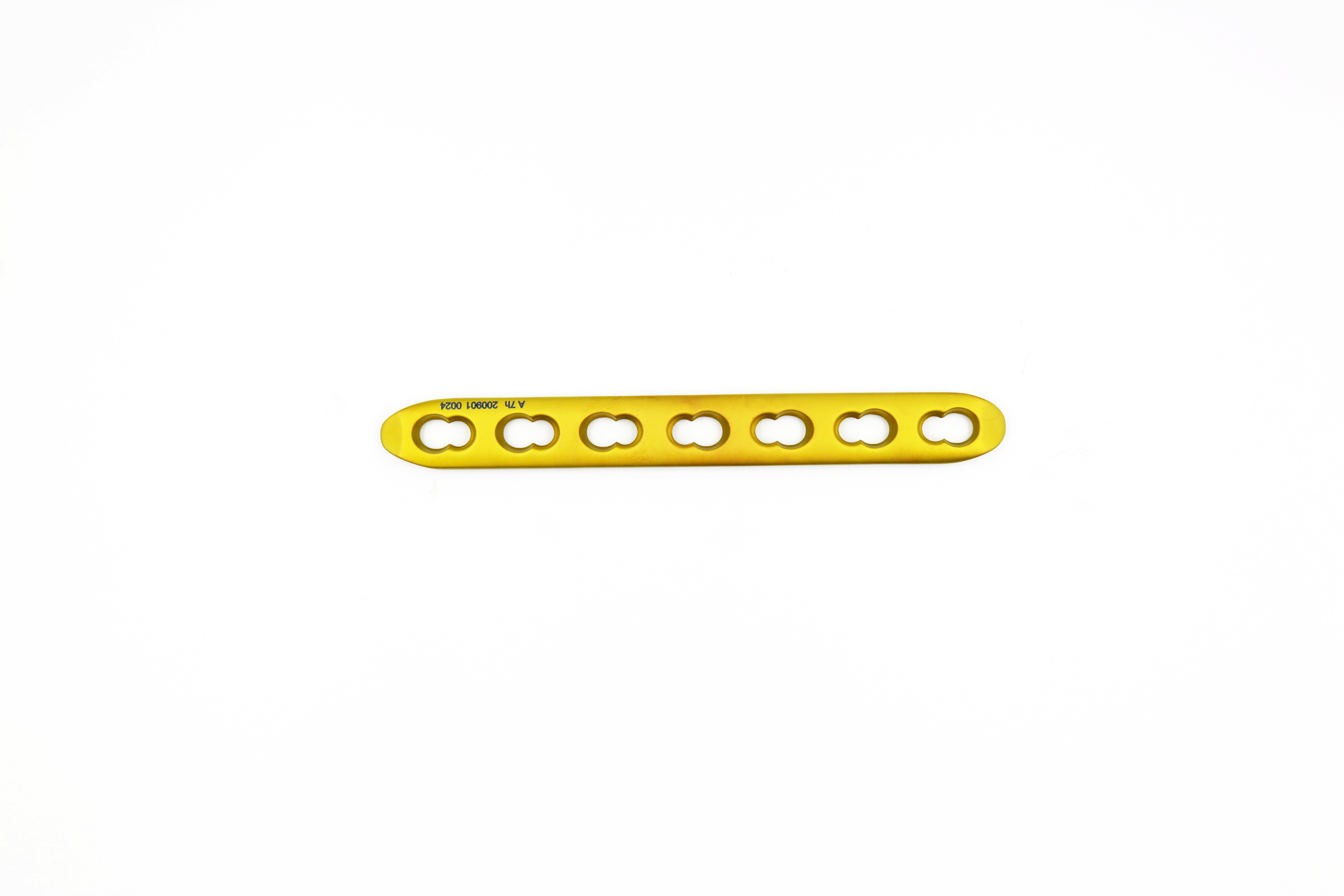

Tibial finite contact locking plate

Tibial finite contact locking plate

Product Summary：

The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Instructions
Being updated.
Features
Structure and composition:The product is made of TA3G pure titanium sheet that meets the GB/T 13810 standard. The surface of the product is colored anodized. Non-sterile packaging.

Product material: TA3G pure titanium sheet.

Certificate: CE/ISO 13485

Model Number: SDYZ-05

Tibial finite contact locking plate locking hole with the use of 3.5 screws.
Specifications
Number of holes 4~18 holes
Type /
Total length 80~332±3mm，every 18mm is a specification
Width 14±2mm
Thickness 4.5±0.5mm

Product Type Model Length
Tibial finite contact locking plate SDYZ-05 4 holes left/right 80
Tibial finite contact locking plate SDYZ-05 5 holes left/right  98
Tibial finite contact locking plate SDYZ-05 6 holes left/right 116
Tibial finite contact locking plate SDYZ-05 7 holes left/right 134
Tibial finite contact locking plate SDYZ-05 8 holes left/right 152
Tibial finite contact locking plate SDYZ-05 9 holes left/right 170
Tibial finite contact locking plate SDYZ-05 10 holes left/right 188
Tibial finite contact locking plate SDYZ-05 11 holes left/right 206
Tibial finite contact locking plate SDYZ-05 12 holes left/right 224
Tibial finite contact locking plate SDYZ-05 13 holes left/right 242
Tibial finite contact locking plate SDYZ-05 14 holes left/right 260
Tibial finite contact locking plate SDYZ-05 15 holes left/right 278
Tibial finite contact locking plate SDYZ-05 16 holes left/right 296
Tibial finite contact locking plate SDYZ-05 17 holes left/right 314
Tibial finite contact locking plate SDYZ-05 18 holes left/right 332
Scope of application
Used for internal fixation of fractures during orthopedic surgery.
